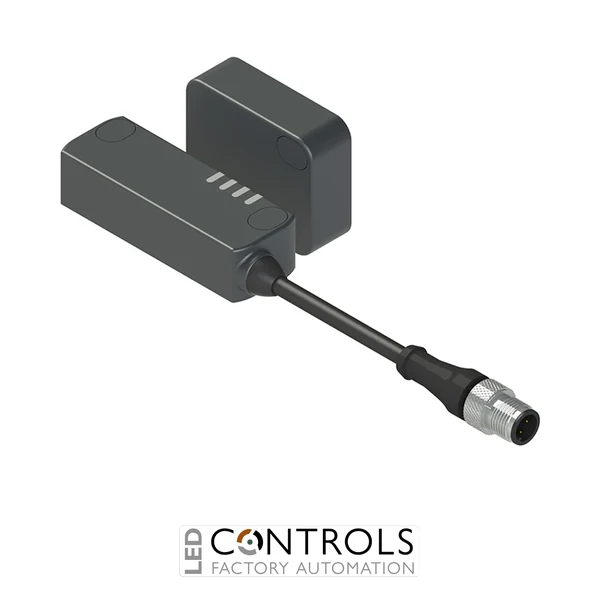

Why Choose the Pizzato ST DD310M0.1-E0T ST D Series Safety Sensor?
The Pizzato ST DD310M0.1-E0T is a robust RFID safety sensor designed for contactless monitoring of movable guards, doors and protective devices on industrial machinery. As part of the advanced Pizzato ST D series, it combines RFID sensing technology with redundant electronic safety outputs to provide dependable machine safeguarding in demanding automation environments.
This model uses a low-level coded RFID actuator and operates without mechanical contact between the sensor and actuator, reducing wear and supporting a long operating life even in applications with frequent guard movements. The ST D series safety architecture can support systems up to PL e, Category 4 and SIL 3 when correctly integrated into a suitable safety circuit.
The ST DD310M0.1-E0T operates from a 24 V DC supply and features a 0.1 m PVC cable with M12 connector, with the connection exiting from the right-hand side of the technopolymer housing. It provides two safety inputs, two safety outputs and one signalling output, while its front-fixing E0T actuator provides a generous 20 mm actuation distance. IP67 and IP69K protection makes the sensor suitable for demanding industrial and washdown environments.
Key Advantages
- Contactless RFID safety sensor designed for machine guard monitoring.
- 20 mm actuation distance provides generous tolerance for guard alignment.
- Supports safety architectures up to PL e, Category 4 and SIL 3.
- 0.1 m PVC cable with M12 connector simplifies connection and replacement.
- Redundant safety electronics designed for reliable industrial machine protection.
- IP67 and IP69K protection for harsh and washdown environments.
Key Features
- Pizzato ST D series RFID safety sensor.
- 24 V DC supply voltage.
- 2 safety inputs IS1-IS2.
- 2 safety outputs OS1-OS2.
- 1 signalling output O3.
- Low-level coded RFID actuator according to ISO 14119.
- 20 mm actuator actuation distance.
- Front-fixing actuator with 40 × 50 × 16 mm dimensions.
- Technopolymer housing with right-hand output connection.
- 0.1 m PVC cable with M12 connector.
- Suitable for series connection with compatible Pizzato safety devices.
Reliable RFID Protection for Machine Guards
RFID safety sensors such as the Pizzato ST DD310M0.1-E0T monitor the position of machine guards without requiring mechanical contact between the sensor and actuator. The electronically coded actuator allows the safety system to detect whether the associated guard is in the required position before hazardous machine movement is permitted.
The ST D series is designed for modern industrial safety systems where reliability, flexible installation and resistance to demanding environmental conditions are essential. Its two safety inputs and two safety outputs allow compatible Pizzato safety devices to be connected in series, helping simplify the safeguarding of machinery with multiple access points while supporting high safety performance.
Typical Applications
- Machine guard and access door monitoring.
- Packaging and production machinery.
- Automated assembly equipment.
- Robotic cells and perimeter guarding.
- Food and beverage processing machinery.
- Material handling and conveyor systems.
