Why Choose the Pizzato ST DD310M0.2-D0T ST D Series Safety Sensor?

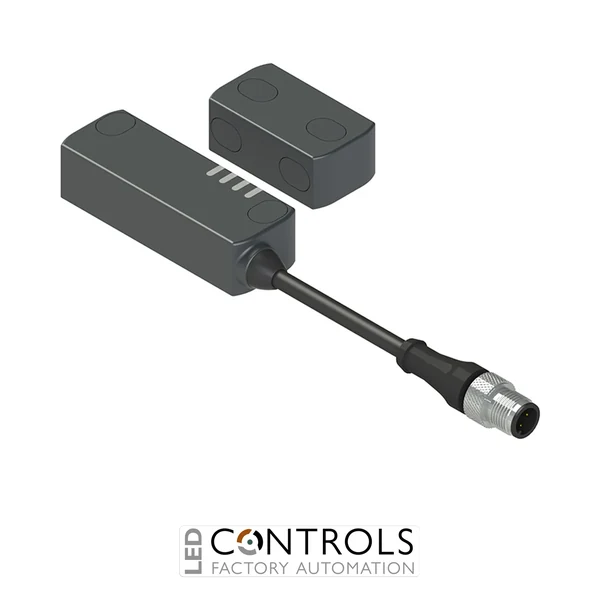

The Pizzato ST DD310M0.2-D0T is a robust RFID safety sensor designed for contactless monitoring of movable guards, doors and protective devices on industrial machinery. As part of the advanced Pizzato ST D series, it combines RFID sensing technology with redundant electronic safety outputs to provide dependable machine safeguarding in demanding automation environments.
This model is supplied with a standard D0T low-level coded RFID actuator. The sensor recognises compatible D0T actuators, while its contactless operating principle eliminates mechanical wear between the sensor and actuator. The ST D series can support safety systems up to PL e, Category 4 and SIL 3 when correctly integrated into a suitable safety control architecture.
The ST DD310M0.2-D0T operates from a 24 V DC supply and features a short cable connection with an M12 connector for convenient integration into industrial wiring systems. It provides two safety inputs, two safety outputs and one signalling output, while the standard D0T actuator provides a nominal 12 mm actuation distance. Its glass-fibre-reinforced technopolymer housing and IP67/IP69K protection make it suitable for demanding industrial environments.
Key Advantages
- Contactless RFID safety sensor designed for machine guard monitoring.
- Standard D0T low-level coded actuator for reliable contactless guard detection.
- Supports safety architectures up to PL e, Category 4 and SIL 3.
- 12 mm actuation distance provides useful tolerance for guard alignment.
- M12 connection arrangement supports straightforward installation in industrial machinery.
- IP67 and IP69K protection for demanding and washdown environments.
Key Features
- Pizzato ST D series RFID safety sensor.
- 24 V DC supply voltage.
- 2 safety inputs IS1-IS2.
- 2 safety outputs OS1-OS2.
- 1 signalling output O3.
- Low-level coded D0T RFID actuator according to ISO 14119 coding principles.
- 12 mm actuator actuation distance.
- Glass-fibre-reinforced technopolymer sensor housing.
- Right-hand connection outlet.
- Four LED indicators for sensor status monitoring.
- Supports series connection of up to 32 compatible sensors while maintaining PL e in a correctly designed safety system.
Reliable RFID Protection for Machine Guards
RFID safety sensors such as the Pizzato ST DD310M0.2-D0T monitor the position of machine guards without requiring mechanical contact between the sensor and actuator. The sensor electronically recognises the D0T actuator, allowing the machine safety system to determine whether the associated guard is correctly positioned before hazardous movement is permitted.
The ST D series is designed for modern industrial safety systems where reliability, flexible installation and resistance to demanding environmental conditions are essential. Its two safety inputs and two safety outputs allow compatible sensors and safety devices to be connected in series, with up to 32 sensors supported while maintaining PL e when the complete safety system is correctly designed and configured.
Typical Applications
- Machine guard and access door monitoring.
- Packaging and production machinery.
- Automated assembly equipment.
- Robotic cells and perimeter guarding.
- Food and beverage processing machinery.
- Material handling and conveyor systems.
