Why Choose the Pizzato ST DD310N1-D0T ST D Series Safety Sensor?

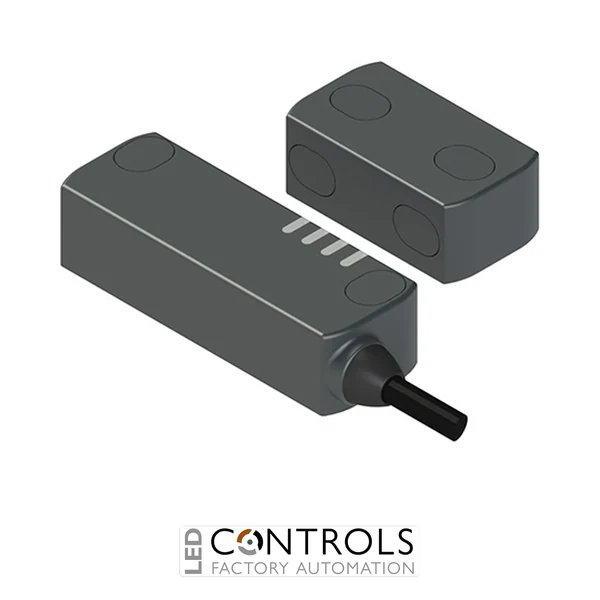

The Pizzato ST DD310N1-D0T is a compact and robust RFID non-contact safety sensor designed for monitoring machine guards, access doors and protective devices in industrial automation systems. As part of the Pizzato ST D Series Safety Sensors, it uses electronic RFID technology to provide dependable guard-position detection without mechanical contact between the sensor and actuator.
The ST DD310N1-D0T provides two safety inputs IS1 and IS2, two safety outputs OS1 and OS2, and one signalling output O3, allowing flexible integration into modern machine-safety architectures and compatible series-connected safety systems. Its electronic non-contact operating principle reduces mechanical wear and helps provide reliable operation in machinery with frequent guard-opening cycles.
Operating from a 24 V DC power supply, this N1 version features an integrated 1 m PVC cable for straightforward hard-wired installation. The supplied D0T RFID actuator uses a low coding level and provides an actuation distance of approximately 12 mm, while the durable technopolymer housing provides IP67 and IP69K protection for demanding industrial environments.
Key Advantages
- Reliable RFID non-contact safety sensor for machine guard monitoring.
- Two safety inputs and two safety outputs support flexible machine-safety integration.
- Dedicated O3 signalling output provides sensor status information to the control system.
- Integrated 1 m PVC cable provides straightforward hard-wired installation.
- Approximately 12 mm actuation distance supports practical non-contact guard alignment.
- Non-contact sensing reduces mechanical wear and maintenance requirements.
- IP67 and IP69K protection supports installation in demanding industrial environments.
Key Features
- Pizzato ST D series RFID safety sensor.
- 24 V DC power supply.
- Two safety inputs IS1 and IS2.
- Two safety outputs OS1 and OS2.
- One signalling output O3.
- Integrated 1 m PVC cable.
- D0T RFID actuator with low coding level.
- Approximately 12 mm actuation distance.
- Non-contact electronic sensing for reduced mechanical wear.
- Durable technopolymer housing.
- -25 °C to +70 °C operating temperature.
- IP67 / IP69K environmental protection.
Reliable RFID Guard Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST DD310N1-D0T monitor movable machine guards without requiring physical contact between the sensor and actuator. When the D0T actuator enters the sensor's operating zone, the RFID sensing system recognises the coded actuator and enables the safety outputs to communicate the guard status to the associated machine-safety control system.
The combination of dual safety inputs, dual safety outputs and a dedicated signalling output enables the ST DD310N1-D0T to integrate effectively with modern industrial safety controllers and compatible safety devices. Its integrated cable, non-contact operating principle and robust environmental protection make it well suited to automated machinery requiring dependable guard monitoring and durable hard-wired installation.
Typical Applications
- Machine guard and safety door monitoring.
- Industrial automation and production machinery.
- Packaging and processing equipment.
- Robotic cells and automated manufacturing systems.
- Conveyor and material handling machinery.
- CNC machines and enclosed production equipment.
- OEM machinery and series-connected machine-safety systems.
