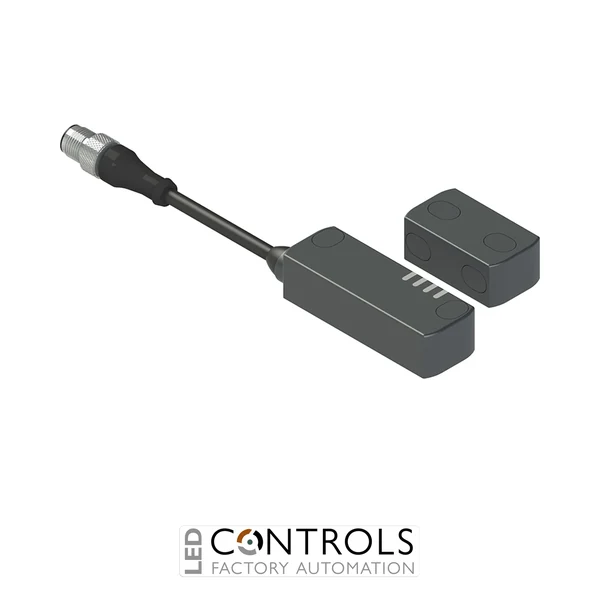

Why Choose the Pizzato ST DL310M0.1-D0T ST D Series Safety Sensor?
The Pizzato ST DL310M0.1-D0T is a compact and highly reliable RFID safety sensor designed for non-contact monitoring of guards, doors and protective devices on industrial machinery. As part of the advanced Pizzato ST D series RFID safety sensors, it combines coded RFID technology with solid-state safety outputs to provide dependable machine guarding without the mechanical wear associated with conventional electromechanical switches.
The ST DL310M0.1-D0T features two OS safety outputs, one signalling output and two IS safety inputs, allowing it to be integrated into series-connected safety systems and modern industrial control architectures. Its non-contact operating principle provides excellent resistance to contamination and mechanical misalignment while supporting frequent operating cycles in demanding production environments.
This model is supplied with a 0.1 m cable and M12 connector positioned on the left and is paired with the SM D0T low-coded RFID actuator, providing an actuation distance of approximately 12 mm. With IP67 and IP69K protection and support for safety architectures up to PL e, Category 4 and SIL 3, it is well suited to safety-critical machine guarding applications.
Key Advantages
- Non-contact RFID safety sensing technology eliminates mechanical contact wear.
- Two OS safety outputs for integration with safety controllers and safety relays.
- Two IS safety inputs support series-connected safety sensor configurations.
- Includes a low-coded SM D0T RFID actuator with approximately 12 mm actuation distance.
- High environmental protection with IP67 and IP69K ratings.
- Supports machine safety systems up to PL e, Category 4 and SIL 3.
Key Features
- Pizzato ST D series RFID safety sensor.
- Two OS safety outputs.
- One signalling output.
- Two IS safety inputs.
- 0.1 m connection cable with M12 connector.
- Connector positioned on the left-hand side.
- SM D0T low-coded actuator.
- Approximate 12 mm actuation distance.
- 24 V DC nominal supply.
- Protection ratings of IP67 and IP69K.
- Operating temperature range of -25 °C to +70 °C.
- Suitable for safety architectures up to PL e, Category 4 and SIL 3.
Reliable RFID Guard Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST D series monitor the position of machine guards without requiring physical contact between the sensor and actuator. When the coded actuator enters the sensor's operating zone, the safety system can confirm that the protective device is correctly positioned and permit safe machine operation.
The ST DL310M0.1-D0T combines solid-state safety outputs with dedicated safety inputs for integration into modern machine safety architectures. Its sealed non-contact construction, high ingress protection and resistance to mechanical wear make it particularly suitable for machinery exposed to dust, moisture, frequent wash-down or high operating-cycle requirements.
Typical Applications
- Machine guard and access-door monitoring.
- Industrial production and assembly machinery.
- Packaging and processing equipment.
- Automated manufacturing cells and robotic systems.
- Conveyors and material handling machinery.
- Food, beverage and wash-down machinery requiring high ingress protection.
