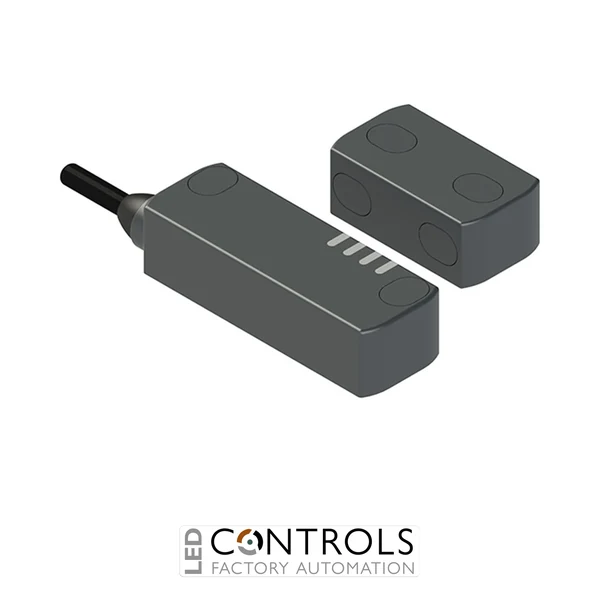

Why Choose the Pizzato ST DL310N5-D0T ST D Series Safety Sensor?
The Pizzato ST DL310N5-D0T is a robust RFID non-contact safety sensor designed for reliable monitoring of machine guards, access doors and protective devices in industrial automation systems. As part of the Pizzato ST D safety sensor series, it uses RFID coded switching technology to provide dependable guard detection without mechanical contact, helping minimise wear and improve service life on frequently operated machinery.
The ST D series is designed around a 24 V DC supply and provides electronic safety inputs and outputs for integration into machine safety circuits. Its redundant safety architecture allows compatible ST D sensors to be incorporated into high-performance functional safety systems, making the series suitable for machine builders and automation engineers requiring reliable non-contact interlocking.
The ST DL310N5-D0T uses a D0T RFID actuator and the N5 configuration provides a 5 m cable connection for installations where additional wiring length is required between the safety sensor and control equipment. Robust technopolymer construction and the high environmental protection offered by the ST D series make it suitable for demanding industrial machinery and automation applications.
Key Advantages
- Non-contact RFID safety sensor designed for machine guard monitoring.
- D0T RFID actuator provides coded electronic guard detection.
- 24 V DC operation suitable for industrial machine safety systems.
- Electronic safety inputs and outputs support flexible safety circuit integration.
- 5 m cable connection provides additional installation flexibility.
- Contactless operation helps minimise mechanical wear on frequently operated guards.
Key Features
- Pizzato ST D RFID safety sensor series.
- Non-contact switching using RFID technology.
- D0T RFID actuator.
- 24 V DC nominal supply.
- Two safety inputs.
- Two safety outputs.
- One signalling output.
- 5 m cable connection.
- Robust technopolymer construction for industrial machinery.
- Designed for non-contact monitoring of movable guards and access doors.
Reliable RFID Guard Monitoring for Industrial Machinery
RFID safety sensors such as the Pizzato ST D series monitor the position of movable guards and protective devices without requiring mechanical contact between the sensor and actuator. This contactless operating principle eliminates the mechanical switching action associated with traditional interlock switches, helping reduce wear and providing dependable performance on machinery with frequent operating cycles.
The ST DL310N5-D0T combines RFID sensing with electronic safety inputs and outputs, allowing it to form part of an integrated machine safety architecture. Its 5 m cable provides flexibility when routing connections through machinery and control installations, making the sensor particularly useful where the safety control equipment is positioned some distance from the monitored guard.
Typical Applications
- Industrial machine guard and access-door monitoring.
- Packaging and production machinery.
- Automated assembly equipment.
- Robotic cells and industrial automation systems.
- Material handling and conveyor machinery.
- OEM machinery requiring non-contact RFID safety interlocking.
