Why Choose the Pizzato ST DL420M0.1 RFID Safety Sensor?

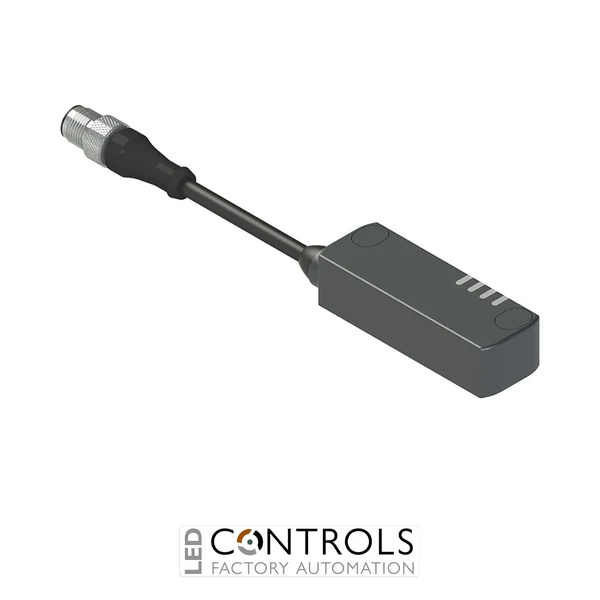

The Pizzato ST DL420M0.1 is a reliable RFID coded non-contact safety sensor designed for monitoring machine guards, safety doors and protective covers in industrial automation and machine safety applications. As part of the advanced Pizzato ST D Series Safety Sensors, it provides dependable actuator detection and secure integration into modern safety systems using RFID technology.
This safety sensor uses RFID coded non-contact switching technology to detect coded actuators without mechanical contact, reducing wear and improving operational reliability in applications with frequent opening and closing cycles. The ST D series is designed for demanding industrial environments where reliable safety monitoring and long service life are required.
The ST DL420M0.1 operates from a 24 V DC supply and provides 2 safety inputs (IS1, IS2), 2 safety outputs (OS1, OS2), 1 signalling output (O3) and 1 programming input (I3). With a PVC cable and M12 connector connection, approximately 12 mm actuation distance and IP67 / IP69K protection, it is suitable for industrial machine guarding applications.
Key Advantages
- Advanced RFID coded non-contact safety sensing for industrial machine protection.
- Programmable RFID safety technology for reliable actuator recognition.
- 2 safety inputs and 2 safety outputs for flexible safety circuit integration.
- IP67 / IP69K protection rating suitable for harsh industrial environments.
- Contactless operation reduces mechanical wear and maintenance requirements.
- Compact technopolymer housing with M12 connector connection for simple installation.
Key Features
- Pizzato ST D Series RFID safety sensor.
- RFID coded non-contact switching technology.
- 24 V DC power supply.
- 2 safety inputs (IS1, IS2).
- 2 safety outputs (OS1, OS2).
- 1 signalling output (O3).
- 1 programming input (I3).
- PVC cable with M12 connector connection.
- Approx. 12 mm actuation distance.
Reliable Machine Safety Monitoring
RFID safety sensors such as the Pizzato ST DL420M0.1 provide reliable monitoring of movable machine guards by confirming the correct actuator before enabling safe machine operation. Their non-contact RFID technology supports dependable performance in industrial environments exposed to frequent operation and challenging conditions.
The ST D series is designed for machine builders and automation engineers requiring compact safety devices with robust construction, flexible connection options and straightforward integration into modern safety control systems.
Typical Applications
- Machine safety doors and protective guards.
- Industrial automation equipment.
- Packaging and production machinery.
- Robotic manufacturing cells.
- Machine enclosures and access protection systems.
- OEM machine safety applications.
