Why Choose the Pizzato ST DL510M0.1-D0T Safety Sensor?
The Pizzato ST DL510M0.1-D0T is an RFID-coded non-contact safety sensor designed for monitoring guards, doors and protective devices on industrial machinery. Part of the Pizzato ST D series, it combines RFID sensing technology with redundant electronic safety outputs to provide reliable machine access monitoring without the mechanical wear associated with conventional electromechanical safety switches.
The ST DL510M0.1-D0T features two safety outputs OS, one signalling output O, two safety inputs IS and one EDM input. The EDM input enables monitoring of external devices within an appropriately designed safety circuit, while the safety inputs support integration with compatible safety components and series-connected machine guarding systems.

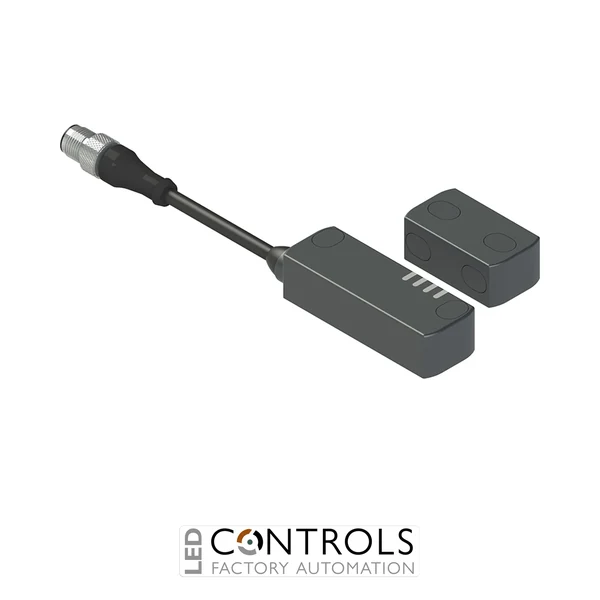

This model uses a 0.1 m cable with an M12 connector positioned on the left and is supplied with the SM D0T low-level coded RFID actuator. The actuator provides a nominal actuation distance of 12 mm, while the sensor's robust construction, IP67 / IP69K protection and operating temperature range of -25 to +70 °C make it suitable for demanding industrial automation environments.
Key Advantages
- Non-contact RFID safety sensing minimises mechanical wear and supports a long operating life.
- Integrated EDM input supports external device monitoring within machine safety systems.
- SM D0T low-level coded actuator provides reliable guard position detection.
- 12 mm nominal actuation distance provides practical tolerance for guard alignment.
- Supports safety architectures up to PL e / Category 4 and SIL 3 when correctly integrated.
- 0.1 m cable with M12 connector simplifies connection and sensor replacement.
- IP67 / IP69K protection supports installation in demanding industrial environments.
Key Features
- Pizzato ST D series RFID safety sensor.
- 24 V DC nominal supply.
- 2 OS safety outputs.
- 1 O signalling output.
- 2 IS safety inputs.
- 1 EDM input for external device monitoring.
- SM D0T low-level coded RFID actuator.
- 12 mm nominal actuation distance.
- 0.1 m cable with M12 connector.
- Left-hand electrical connection arrangement.
- Compact technopolymer housing for machine mounting.
- IP67 and IP69K environmental protection.
Reliable RFID Guard Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST D series monitor the position of machine guards without requiring mechanical contact between the sensor and actuator. When the coded actuator enters the sensor's operating zone, the safety electronics provide the signals required by the machine safety control system, helping ensure hazardous movement is permitted only when protective guards are correctly positioned.
The ST DL510M0.1-D0T combines redundant safety outputs with two safety inputs and an EDM input for external device monitoring. This makes it particularly suitable for safety circuits requiring feedback monitoring of external switching devices, while its non-contact RFID operating principle reduces wear in applications where guards and access doors are operated frequently.
Typical Applications
- Machine guard and access-door monitoring.
- Automated production and assembly lines.
- Packaging and processing machinery.
- Robotic cells and perimeter guarding systems.
- Conveyor and material handling equipment.
- Safety circuits requiring external device monitoring.
