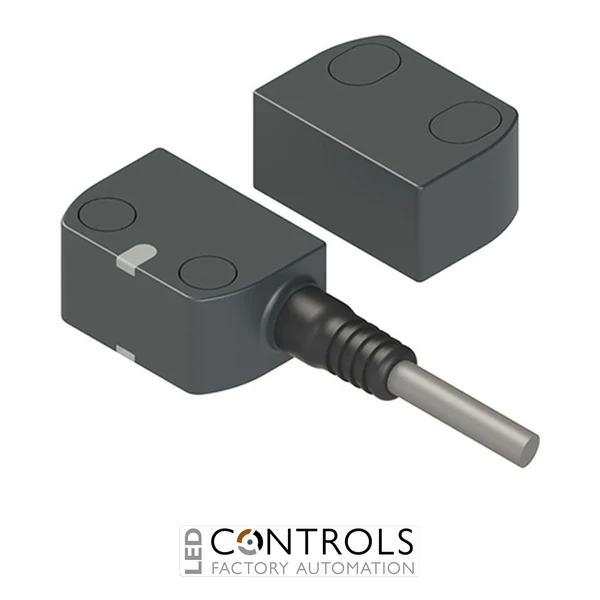

Why Choose the Pizzato ST GD310H5-G0T Safety Sensor?
The Pizzato ST GD310H5-G0T is an industrial RFID safety sensor from the Pizzato ST G series, designed for reliable non-contact monitoring of movable guards, doors and access points on machinery. Its electronic RFID operating principle enables guard position detection without mechanical contact between the sensor and actuator, helping minimise wear in frequently operated machine safety applications.
The GD310 configuration provides two safety inputs IS1-IS2, two safety outputs OS1-OS2 and one signalling output O3. The safety inputs support integration of compatible safety devices into series-connected architectures, while the redundant OS outputs provide electronic safety signalling for connection to compatible safety modules and safety PLCs.
Operating from a 24 V DC supply, the ST GD310H5-G0T uses a durable PUR cable and the G0T RFID actuator. The G0T configuration provides a low coding level with interchangeable actuators of the same coded type and an 11 mm actuation distance, providing a practical non-contact machine guard monitoring solution for industrial automation systems.
Key Advantages
- Non-contact RFID safety sensor designed for industrial machine guarding.
- Two safety inputs IS1-IS2 support compatible series-connected safety architectures.
- Two safety outputs OS1-OS2 provide redundant electronic safety signalling.
- Dedicated signalling output O3 provides additional machine status information.
- Low-coded G0T actuator allows interchangeable actuators of the same coded type.
- 11 mm actuation distance supports reliable non-contact guard detection.
- PUR cable connection provides a durable direct-wired installation.
- 24 V DC supply suits standard industrial automation and safety systems.
Key Features
- Pizzato ST G series RFID safety sensor.
- 24 V DC supply voltage.
- Two safety inputs IS1-IS2.
- Two safety outputs OS1-OS2.
- One signalling output O3.
- G0T RFID actuator.
- Low coding level actuator configuration.
- 11 mm actuation distance.
- G0T actuator dimensions of 37 × 26 × 18 mm.
- Lateral-fixing G0T actuator design.
- PUR cable connection.
- Robust technopolymer ST G series housing.
- Operating temperature range from -25 to +70 °C.
- IP67 according to EN 60529.
- IP69K according to ISO 20653.
- Non-contact operation helps reduce mechanical wear on frequently operated guards.
RFID Guard Monitoring with Safety Inputs
The Pizzato ST GD310H5-G0T monitors movable machine guards without requiring physical contact between the sensor and actuator. When the G0T actuator enters the sensor's operating zone, the electronic safety outputs provide guard status signals that can be evaluated by a compatible safety module or safety PLC. The 11 mm actuation distance provides practical installation tolerance while maintaining non-contact operation.
The GD310 configuration also incorporates two safety inputs IS1-IS2, allowing compatible safety devices to be incorporated into series-connected safety architectures. Combined with its low-coded G0T actuator and durable PUR cable connection, the ST GD310H5-G0T provides a versatile solution for machinery with multiple guarded access points and other industrial safety applications.
Typical Applications
- Industrial machine guards and protective access doors.
- Machinery with multiple series-connected safety sensors.
- Packaging and production machinery.
- Robotic cells and automated manufacturing systems.
- Material handling and conveyor equipment.
- Processing and assembly machinery.
- OEM machinery and industrial automation systems.
