Why Choose the Pizzato ST GD510N10-G0T Safety Sensor?

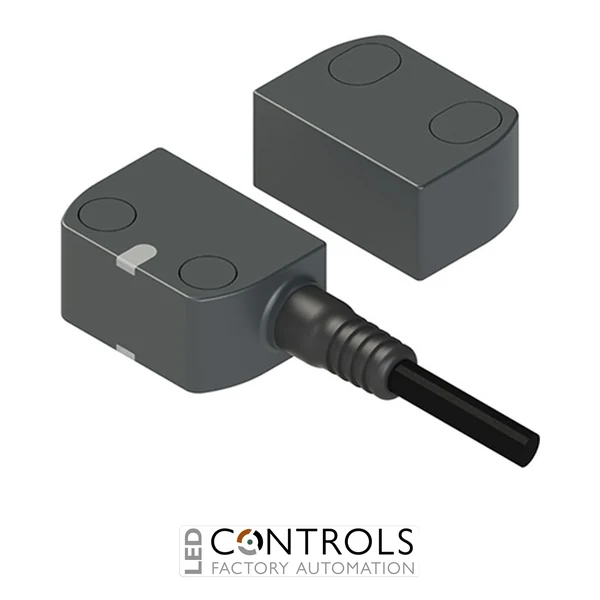

The Pizzato ST GD510N10-G0T is a compact RFID non-contact safety sensor designed for monitoring movable guards, doors and protective access points on industrial machinery. As part of the Pizzato ST G RFID Safety Sensor Series, it combines coded actuator recognition with solid-state safety outputs for dependable machine interlocking without mechanical contact.
The ST GD510N10-G0T provides 2 safety inputs (IS1–IS2), 2 safety outputs (OS1–OS2), 1 signalling output (O3) and 1 EDM feedback input, making it suitable for integration with modern industrial safety circuits. Its low-level RFID coding uses the standard G0T actuator configuration, while non-contact operation helps minimise mechanical wear in applications with frequent guard movement.
Operating from a 24 V DC supply, the sensor features a PVC connection cable, approximately 11 mm actuation distance and a compact actuator measuring 37 × 26 × 18 mm with lateral fixing. IP67 / IP69K protection and an operating temperature range of -25°C to +70°C make the ST GD510N10-G0T suitable for demanding industrial environments.
Key Advantages
- Non-contact RFID safety interlock technology helps reduce mechanical wear.
- Compact ST G technopolymer housing for space-conscious machinery installations.
- 2 safety inputs and 2 safety outputs support integration into industrial safety circuits.
- Dedicated O3 signalling output provides status information to the machine control system.
- Integrated EDM feedback input supports external device monitoring.
- PVC cable connection provides straightforward hard-wired installation.
- IP67 / IP69K protection supports operation in demanding industrial environments.
Key Features
- Pizzato ST G RFID Safety Sensor Series.
- 24 V DC supply voltage.
- 2 safety inputs (IS1–IS2).
- 2 safety outputs (OS1–OS2).
- 1 signalling output (O3).
- 1 EDM feedback input for external device monitoring.
- Low-level RFID actuator coding (G0T).
- RFID-based non-contact actuator detection.
- Actuation distance of approximately 11 mm.
- PVC cable connection.
- Technopolymer ST G series housing.
- Compatible G actuator dimensions of 37 × 26 × 18 mm with lateral fixing.
- IP67 / IP69K environmental protection.
- Operating temperature range of -25°C to +70°C.
Reliable RFID Guard Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST GD510N10-G0T monitor the position of movable machine guards without requiring physical contact between the sensor and actuator. When the actuator leaves the permitted sensing area, the safety outputs change state so the connected safety control system can stop or prevent hazardous machine movement.
The ST G series combines redundant electronic safety technology with a compact symmetrical housing designed for modern machine-building applications. The ST GD510N10-G0T also provides safety inputs, an auxiliary signalling output and an EDM feedback input, supporting integration with safety relays, contactors and safety PLC systems while helping simplify machine diagnostics and external device monitoring.
Typical Applications
- Industrial machine guard monitoring.
- Safety doors and protective access panels.
- Automated production and assembly lines.
- Robotic cells and safety enclosures.
- Packaging and processing machinery.
- Food and pharmaceutical production equipment.
- CNC machines and manufacturing equipment.
- OEM machinery and industrial automation systems.
