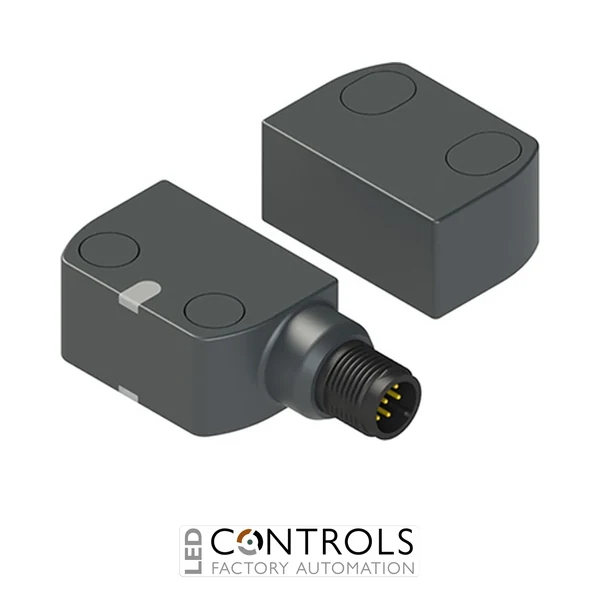

Why Choose the Pizzato ST GD610MP-G0T Safety Sensor?
The Pizzato ST GD610MP-G0T is a compact and reliable RFID non-contact safety sensor designed for monitoring movable guards, safety doors and protective access points on industrial machinery. As part of the Pizzato ST G RFID Safety Sensor Series, it uses coded RFID actuator detection and electronic safety switching to provide dependable machine interlocking without mechanical contact.
The ST GD610MP-G0T combines 2 safety outputs (OS1–OS2) with 1 signalling output (O3), providing a compact safety interface for connection to suitable safety control equipment. RFID technology eliminates mechanical switching at the guard interface, helping reduce wear and maintenance in machinery where protective doors and guards are frequently operated.
Operating from a 24 V DC supply, the MP configuration incorporates an integrated M12 technopolymer connector for convenient installation. The G0T version uses a low-level coded SM G0T RFID actuator with a compact 37 × 26 × 18 mm housing and approximately 11 mm actuation distance. Its IP67 / IP69K protection and -25°C to +70°C operating range support reliable use in demanding industrial environments.
Key Advantages
- Compact RFID non-contact safety sensor for industrial machine guarding.
- Non-contact operation helps minimise mechanical wear and maintenance.
- 2 safety outputs provide a solid-state safety interface for machine control systems.
- Dedicated O3 signalling output provides additional operating status information.
- Low-level G0T RFID coding provides dependable coded actuator detection.
- Integrated M12 connector simplifies electrical installation and sensor replacement.
- IP67 / IP69K protection supports reliable operation in demanding industrial environments.
Key Features
- Pizzato ST G RFID Safety Sensor Series.
- 24 V DC supply voltage.
- 2 safety outputs (OS1–OS2).
- 1 signalling output (O3).
- RFID-based non-contact actuator detection.
- Low-level actuator coding (G0T).
- SM G0T standard actuator with lateral fixing.
- Actuator dimensions of 37 × 26 × 18 mm.
- Actuation distance of approximately 11 mm.
- Integrated M12 technopolymer connector.
- Symmetrical technopolymer sensor housing.
- IP67 / IP69K environmental protection.
- Operating temperature range of -25°C to +70°C.
- Integrated LED status indication for operating diagnostics.
Reliable RFID Guard Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST GD610MP-G0T monitor the position of movable machine guards without requiring physical contact between the sensor and actuator. When the coded actuator moves outside the permitted detection area, the electronic safety outputs change state so the connected safety control system can stop or prevent hazardous machine movement.
The ST G series is designed for modern industrial automation and machine safety applications where reliable guard monitoring, compact installation and reduced mechanical wear are important. The ST GD610MP-G0T combines two electronic safety outputs with a signalling output and integrated M12 connection, providing a practical solution for connecting the sensor to compatible safety control equipment.
Typical Applications
- Industrial machine guard monitoring.
- Safety doors and protective access panels.
- Automated production and assembly machinery.
- Robotic cells and safety enclosures.
- Packaging and processing machinery.
- CNC machines and manufacturing equipment.
- Material handling and automated machinery.
- OEM machine building and industrial automation systems.
