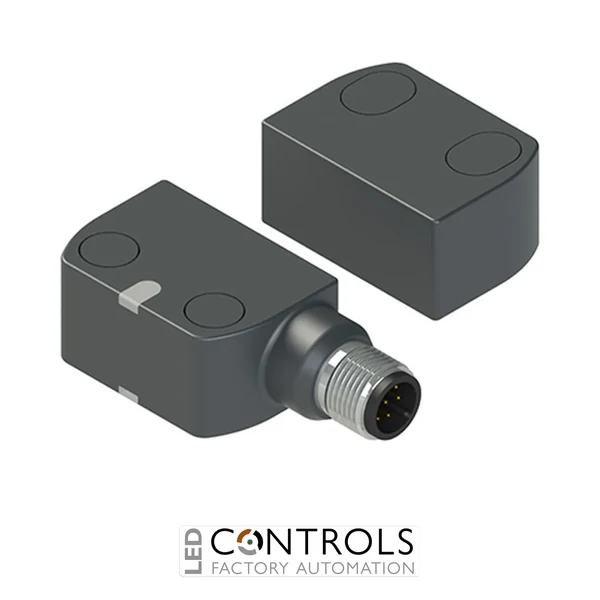

Why Choose the Pizzato ST GD710MK-G0T Safety Sensor?
The Pizzato ST GD710MK-G0T is a compact and robust RFID safety sensor designed for reliable non-contact monitoring of machine guards, access doors and other movable protective devices. As part of the advanced Pizzato ST G series safety sensor range, it uses coded electronic detection to provide dependable guard monitoring in industrial safety and automation applications.
The ST G series combines RFID-based guard monitoring with redundant electronic safety technology and a durable monolithic technopolymer housing. The sensor can be activated from multiple directions, while its compact 22 mm fixing pattern makes it suitable for upgrading traditional magnetic safety sensors without changing existing mounting arrangements.
The ST GD710MK-G0T features a low coding level actuator configuration and an integrated M12 technopolymer connector. With an actuation distance of approximately 11 mm, IP67/IP69K protection and a compact housing, it is well suited to demanding industrial machine guarding applications.
Key Advantages
- Compact RFID-coded safety sensor for industrial machine guarding.
- Low coding level actuator configuration in accordance with EN ISO 14119.
- Non-contact electronic detection helps minimise mechanical wear.
- 24 V DC supply suitable for industrial safety control systems.
- Integrated M12 technopolymer connector simplifies electrical connection.
- High IP67 / IP69K protection for demanding industrial environments.
- Symmetrical housing can be rotated for flexible installation on left- or right-hand guards.
Key Features
- Pizzato ST G series RFID safety sensor.
- ST GD710MK-G0T model.
- Non-contact RFID-coded safety detection.
- Low actuator coding level.
- 24 V DC operating supply.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- 1 signalling output O3.
- Integrated M12 technopolymer connector.
- Actuation distance of approximately 11 mm.
- Actuator dimensions approximately 37 × 26 × 18 mm with lateral fixing.
- Compact monolithic technopolymer housing.
- Actuation possible from multiple directions.
- IP67 / IP69K protection for resistance to dust, water and high-pressure cleaning.
Reliable Safety Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST GD710MK-G0T provide non-contact monitoring of machine guards and access points. The sensor detects its coded actuator electronically, allowing the safety control system to determine whether the protective device is correctly positioned before permitting hazardous machine functions.
The ST G series uses redundant electronics and provides two electronic safety outputs, allowing a single sensor to achieve high safety levels when correctly integrated with suitable safety control equipment. Multiple ST G sensors can also be connected in series with compatible Pizzato safety devices to create efficient safety chains.
As a low coding level version, the ST GD710MK-G0T requires the applicable installation measures specified by EN ISO 14119 to protect against bypassing. Pizzato recommends high coding level actuators where enhanced protection against actuator substitution is required.
Typical Applications
- Machine guard and access door monitoring.
- Industrial machinery safety systems.
- Automated production equipment.
- Robotic cells and automated handling systems.
- Packaging and processing machinery.
- Food and pharmaceutical processing equipment.
- Manufacturing and assembly equipment.
