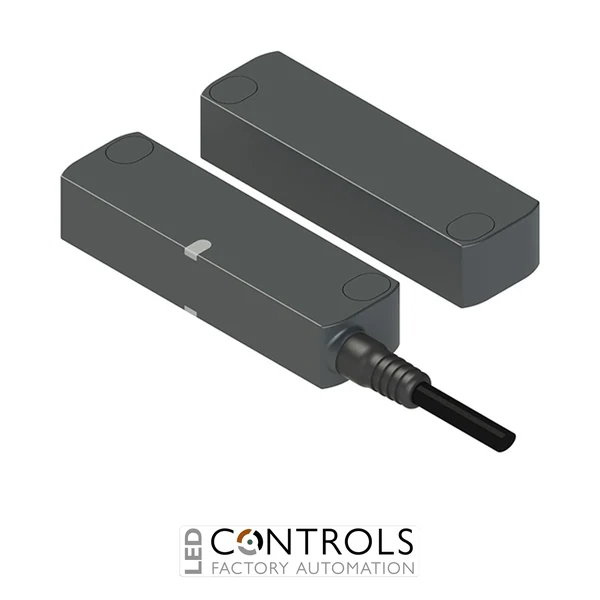

Why Choose the Pizzato ST HD710N10-H1T Safety Sensor?
The Pizzato ST HD710N10-H1T is a compact and reliable RFID safety sensor designed for monitoring movable guards, safety doors and access points on industrial machinery. As part of the Pizzato ST H series safety sensor range, it provides non-contact safety monitoring using RFID technology and is designed for machine guarding and industrial automation applications.
The ST H series combines electronic safety monitoring with a robust technopolymer housing, helping provide dependable operation in demanding industrial environments. The N10 version uses a 1 m PVC cable, providing a practical wired connection to compatible safety controllers and automation systems.
The ST HD710N10-H1T operates from a 24 V DC supply and is supplied with a high coding level H1T actuator. The actuator has a 90 × 25 × 18 mm design with lateral fixing, while the sensor provides an actuation distance of approximately 11 mm and IP67 / IP69K protection for demanding machinery applications.
Key Advantages
- Compact RFID safety sensor designed for machine guarding applications.
- 24 V DC supply for integration with industrial safety control systems.
- High coding level RFID actuator provides coded non-contact guard detection.
- 1 m PVC cable connection provides flexible installation on machinery.
- Approximately 11 mm actuation distance for flexible sensor and actuator positioning.
- IP67 and IP69K protection suitable for demanding industrial environments.
Key Features
- Pizzato ST H series RFID safety sensor.
- 24 V DC operating supply.
- High coding level actuator configuration.
- SM H1T actuator with 90 × 25 × 18 mm dimensions and lateral fixing.
- 11 mm actuator actuation distance.
- 1 m PVC cable connection.
- Technopolymer housing designed for industrial safety applications.
- IP67 / IP69K protection according to the applicable protection standards.
- Permanent magnet holding force: without magnet.
Reliable Safety Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST HD710N10-H1T monitor the position of machine guards without requiring mechanical contact between the sensor and actuator. When correctly installed, the RFID system can detect whether a protected door, cover or guard is within the defined detection area.
The ST H series is designed for integration into industrial safety systems where dependable guard monitoring is required. Its electronic construction, compact technopolymer housing and 1 m cable connection provide a practical solution for machinery, production equipment and automated systems.
Typical Applications
- Machine guard and safety door monitoring.
- Industrial automation and production machinery.
- Access protection on automated equipment.
- Packaging and processing machinery.
- Conveyors and material handling equipment.
- Machine tools and manufacturing systems.
