Why Choose the Pizzato ST HE310N5-H1TG Safety Sensor?

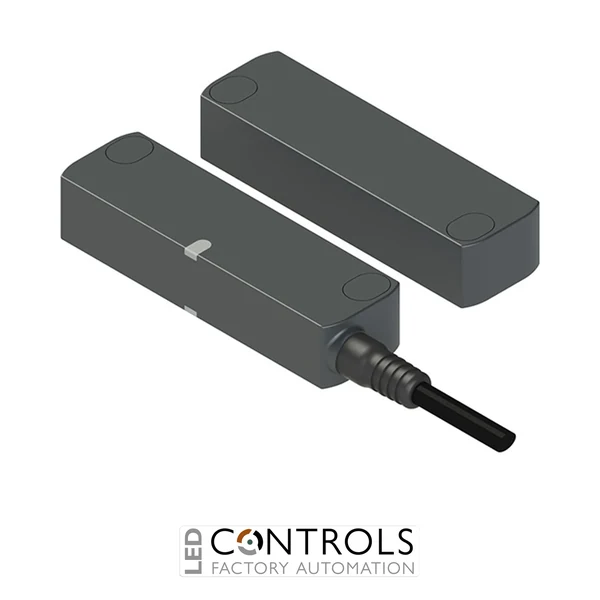

The Pizzato ST HE310N5-H1TG is a high-performance RFID non-contact safety sensor with magnetic actuator holding designed for reliable monitoring of guards, doors and access points on industrial machinery. Part of the advanced Pizzato ST H series RFID safety sensors, it combines high-level RFID actuator coding, electronic safety outputs and permanent magnetic holding in a compact solution for modern machine safety systems.
This sensor provides two safety inputs IS1–IS2, two safety outputs OS1–OS2 and one signalling output O3, allowing integration into safety circuits and series-connected guarding systems. Its high-level coded RFID actuator provides dependable identification and enhanced resistance to manipulation, while non-contact operation minimises mechanical wear associated with conventional safety switches.
The ST HE310N5-H1TG operates from a 24 V DC supply and is supplied with an integrated 5 m cable for direct machine wiring. The H1TG configuration incorporates a permanent magnet providing 50 N holding force, helping retain lightweight guards against vibration, recoil and unwanted movement. With an 11 mm actuation distance, robust technopolymer construction and IP67 / IP69K protection, it is engineered for demanding industrial automation environments.
Key Advantages
- Non-contact RFID safety sensing minimises mechanical wear and maintenance requirements.
- High-level coded actuator provides enhanced protection against manipulation and substitution.
- Permanent magnet provides 50 N holding force for reliable guard retention.
- Two safety inputs and two safety outputs support integration and series connection within machine safety systems.
- Integrated 5 m cable provides flexible direct wiring to control equipment.
- 11 mm actuation distance provides practical tolerance for machine guard alignment.
- IP67 and IP69K protection supports installation in demanding industrial environments.
Key Features
- Pizzato ST H RFID safety sensor series.
- 24 V DC supply voltage.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- 1 signalling output O3.
- High-level RFID actuator coding.
- 11 mm actuator actuation distance.
- Permanent magnet with 50 N holding force.
- 5 m integrated cable connection.
- Technopolymer ST H series housing with permanent magnet.
- Actuator dimensions of 90 × 25 × 18 mm with lateral fixing.
- Wide operating temperature range for industrial machinery installations.
Reliable Safety Monitoring for Industrial Automation
RFID safety sensors such as the Pizzato ST HE310N5-H1TG monitor the position of movable machine guards without requiring mechanical contact between the sensor and actuator. When the correctly coded actuator enters the sensor's operating range, the electronic safety outputs communicate the guard status to the connected safety control system, helping prevent hazardous machine operation when access protection is not correctly positioned.
The ST H series combines coded RFID safety technology with permanent magnetic holding for applications where both guard monitoring and retention are required. The 50 N magnetic holding force helps prevent unwanted guard movement caused by vibration or other external forces, while the safety inputs and outputs allow the sensor to integrate efficiently into modern automated machinery and multi-guard safety architectures.
Typical Applications
- Machine guard and safety-door monitoring.
- Automated production and assembly machinery.
- Robot cells and robotic manufacturing systems.
- Packaging and processing equipment.
- Machining centres and industrial machine tools.
- Conveyors and material handling systems.
