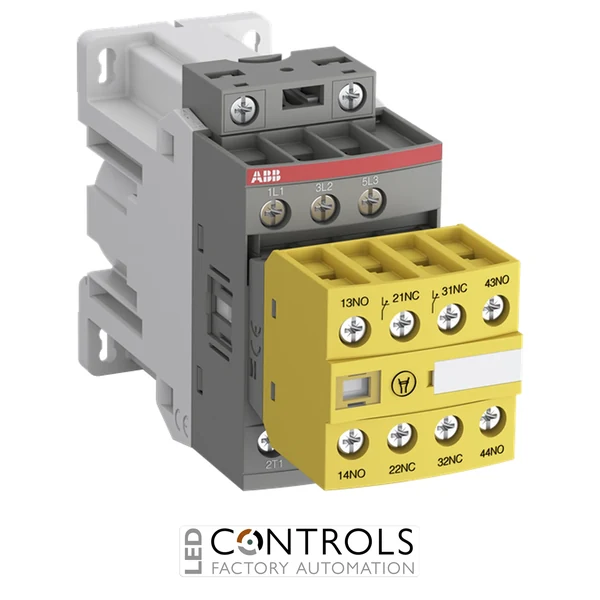

Why Choose the ABB 1SBL136082R3022 AFS09Z Safety Contactor?
The ABB 1SBL136082R3022 is a compact and reliable AFS09Z safety contactor designed for secure switching and monitoring applications in industrial automation and machine safety systems. As part of the advanced ABB AFS contactor series, it combines reliable switching performance with mechanically linked and mirror contacts for enhanced safety circuit integration.
This contactor is engineered for machine safety applications where dependable feedback monitoring and safe control of electrical loads are essential. The AFS series includes fixed front-mounted auxiliary contact blocks, electronic coil technology and built-in surge suppression to simplify installation and improve system reliability.
With a 25 A general use rating, a three-pole contact configuration and a 24 V DC control coil, the ABB 1SBL136082R3022 is suitable for safety-related motor control, machinery and industrial automation applications.
Key Advantages
- Dedicated ABB AFS safety contactor for machine safety applications.
- Mechanically linked and mirror contacts support safety monitoring systems.
- 24 V DC electronic coil control suitable for PLC outputs.
- Fixed auxiliary contact block prevents incorrect manual operation.
- Integrated surge suppression improves reliability and simplifies wiring.
- Compact design suitable for industrial control cabinets.
Key Features
- ABB AFS09Z safety contactor series.
- 3 main normally open power contacts.
- 2 normally open and 2 normally closed auxiliary contacts.
- 24 V DC control voltage.
- 25 A general use rating.
- 9 kW motor switching capability.
- Mechanically linked and mirror contact technology.
- Fixed front-mounted auxiliary contact block.
- Yellow safety identification housing.
- Screw terminal connections.
Reliable Safety Switching for Industrial Automation
Safety contactors such as the ABB AFS series provide reliable isolation and switching in machinery safety circuits. Their mechanically linked and mirror contact technology allows control systems to verify contactor status, supporting safer machine operation and compliance with industrial safety requirements.
The ABB AFS09Z contactor platform is designed for machine builders, safety engineers and automation specialists requiring dependable switching components with integrated monitoring features and straightforward panel installation.
Typical Applications
- Machine safety circuits.
- Emergency stop switching systems.
- Industrial automation panels.
- Motor safety isolation applications.
- Manufacturing machinery.
- OEM safety control systems.
