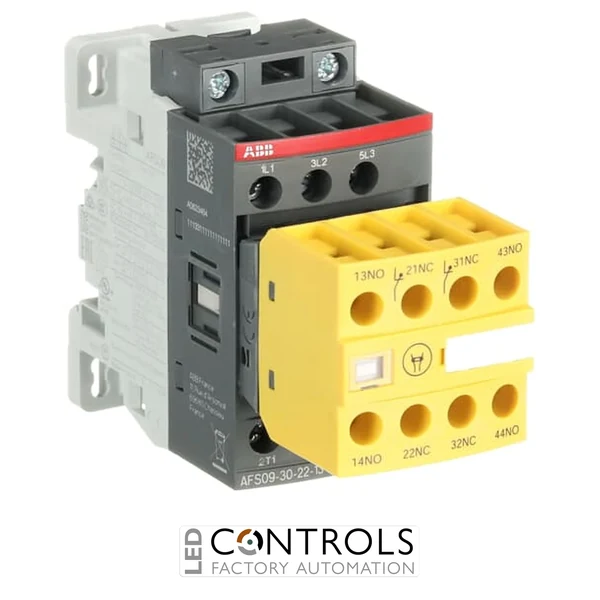

Why Choose the ABB 1SBL137082R1322 AFS09 Safety Contactor?
The ABB 1SBL137082R1322 is a robust 3-pole safety contactor designed for reliable switching and control of three-phase motors and power circuits in industrial machinery and automation systems. The AFS09-30-22-13 is part of ABB's AFS contactor range, developed for safety-related machine applications and industrial motor control.
This contactor combines a block-type design with fixed front-mounted auxiliary contacts, built-in surge protection and ABB AF electronic coil technology. The wide 100–250 V AC/DC control-voltage range helps accommodate control-voltage variations while the yellow low-energy auxiliary contact block provides status feedback for machine safety circuits.
With a rated operational current of 9 A AC-3 at 400 V AC and a motor rating of 4 kW at 400 V AC, the AFS09-30-22-13 is suitable for motor starters, safety circuits, machinery and industrial automation systems requiring dependable contactor operation.
Key Advantages
- Dedicated safety contactor designed for machine safety applications.
- 4 kW motor rating at 400 V AC for AC-3 applications.
- 9 A AC-3 rated operational current at 400 V AC.
- 100–250 V AC/DC control-voltage range for flexible control-system integration.
- Fixed 2 NO + 2 NC auxiliary contacts for safety feedback and control circuits.
- Built-in surge protection for a compact installation.
Key Features
- ABB AFS09 safety contactor series.
- 3 normally open main poles.
- 2 normally open and 2 normally closed auxiliary contacts.
- 9 A AC-3 rated operational current at 400 V AC.
- 25 A AC-1 rated operational current at 400 V AC.
- 4 kW AC-3 rated operational power at 400 V AC.
- 100–250 V AC/DC control-voltage range.
- Fixed front-mounted auxiliary contact block.
- Yellow low-energy auxiliary contact block for safety status feedback.
- Built-in surge protection.
- Screw-terminal connections.
Reliable Motor Control for Machine Safety
Safety contactors such as the ABB AFS09 provide reliable electrical switching while supporting safety-related feedback and control circuits. Their mechanically linked auxiliary contacts and dedicated safety-oriented construction make them suitable for applications where reliable monitoring of the contactor state is required.
The AFS series is designed for machine builders and industrial automation engineers working with safety-related machinery systems. Its wide control-voltage range, integrated surge protection and compatibility with safety architectures help simplify integration into modern industrial control systems.
Typical Applications
- Machine safety and safety-related motor starters.
- Industrial automation and control panels.
- Emergency-stop and motor isolation circuits.
- Production and processing machinery.
- Conveyor and material-handling systems.
- OEM machine-building and industrial safety systems.
