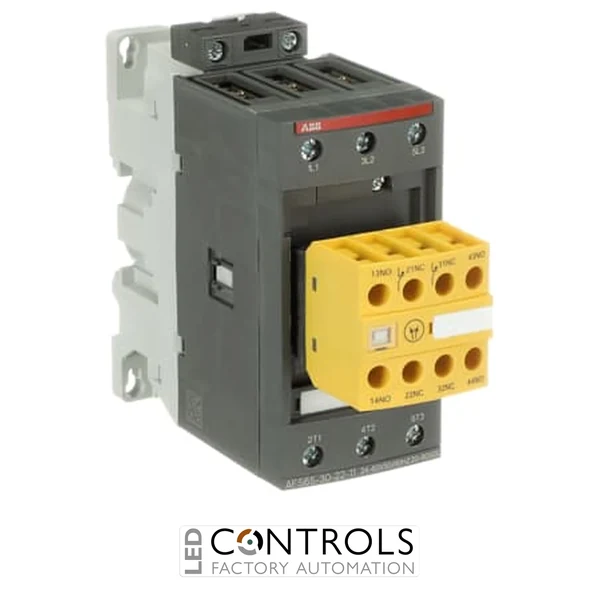

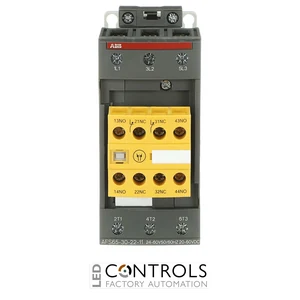

Why Choose the ABB 1SBL387082R1122 AFS65-30-22-11 Safety Contactor?
The ABB 1SBL387082R1122, model AFS65-30-22-11, is a robust 3-pole safety contactor designed for motor control and power switching in machinery safety applications. As part of the ABB AFS contactor series, it combines AF electronic coil technology with dedicated safety-oriented auxiliary contacts, helping machine builders integrate dependable power switching into systems designed in accordance with functional safety standards.
Designed for demanding industrial applications, the AFS65-30-22-11 provides a rated operational current of 65 A at AC-3, 400 V and controls three-phase motors up to 30 kW at 400 V AC. It features three normally open main contacts together with a fixed front-mounted 2 NO + 2 NC auxiliary contact block, providing the status feedback required for safety-related control and monitoring circuits.
The contactor's electronic coil interface accepts 24–60 V AC at 50/60 Hz or 20–60 V DC, allowing operation across a wide control voltage range and helping accommodate voltage variations in industrial control systems. Integrated surge protection, screw terminals and a clearly identifiable low-energy auxiliary contact block make the AFS65-30-22-11 particularly suitable for safety circuits in industrial machinery.
Key Advantages
- Purpose-designed 3-pole contactor for machinery safety applications.
- 30 kW AC-3 motor rating at 400 V for industrial motor control.
- 65 A AC-3 rated operational current at 400 V.
- 105 A AC-1 rated operational current at 400 V.
- Wide-range 24–60 V AC 50/60 Hz or 20–60 V DC electronic coil.
- Fixed 2 NO + 2 NC auxiliary contacts provide status feedback for safety circuits.
- Integrated surge protection reduces the requirement for additional coil suppression components.
- Designed for integration into machinery systems applying standards such as EN ISO 13849 and EN 62061.
Key Features
- ABB AFS65 safety contactor series.
- AFS65-30-22-11 contactor configuration.
- 3 normally open main power contacts.
- Fixed front-mounted 2 NO + 2 NC auxiliary contact block.
- 65 A rated operational current at AC-3, 400 V.
- 105 A rated operational current at AC-1, 400 V.
- 30 kW rated operational power at AC-3, 400 V.
- 24–60 V AC 50/60 Hz / 20–60 V DC electronic control coil.
- Main circuit rated operational voltage up to 690 V IEC.
- 600 V UL main circuit capability.
- 50 hp motor rating at 480 V under UL.
- Built-in surge protection for the electronic coil interface.
- Yellow low-energy auxiliary contact block for easy identification in safety applications.
- Screw terminal connections for secure industrial wiring.
Reliable Switching for Machinery Safety Systems
Safety contactors such as the ABB AFS65-30-22-11 provide controlled isolation and switching of motors and other high-current loads within machinery safety architectures. The three main poles switch the connected power circuit, while the dedicated auxiliary contacts provide status feedback that can be monitored by safety relays, safety PLCs and other machine control equipment.
ABB AFS contactors build on the AF electronic coil platform while incorporating features intended specifically for machine safety applications. The wide control voltage range helps manage variations in industrial control supplies, while built-in surge protection and mechanically linked auxiliary contact functionality support compact and dependable safety control panel designs.
Typical Applications
- Safety-related three-phase motor switching.
- Emergency stop power isolation circuits.
- Industrial machinery safety systems.
- Safety relay and safety PLC controlled circuits.
- Conveyors and material handling equipment.
- Production and packaging machinery.
- Automated manufacturing cells and production lines.
- OEM machinery requiring monitored contactor feedback.
