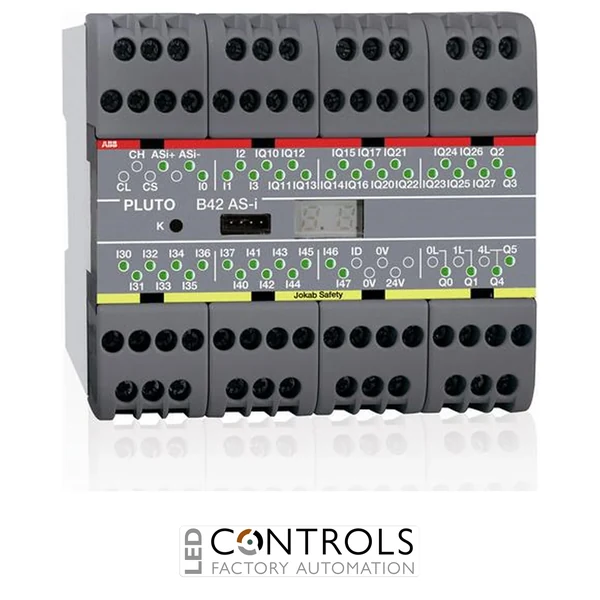

ABB pluto b42 as-i abb safety controller

Why Choose the ABB Pluto B42 AS-i 2TLA020070R1400 Safety Controller?

The ABB Pluto B42 AS-i 2TLA020070R1400 is a compact and powerful programmable safety controller / safety PLC designed for machine safety applications requiring flexible I/O, networked safety communication and AS-Interface integration. Part of the ABB Jokab Safety Pluto family, it combines an AS-i bus with the Pluto Safety Bus for efficient integration of safety devices across automated machinery and production systems.

The Pluto B42 AS-i provides a total of 42 I/O, comprising 20 failsafe inputs, 16 configurable non-failsafe outputs/failsafe inputs, 4 individually failsafe relay outputs and 2 individually failsafe transistor outputs. This flexible architecture allows numerous safety functions to be handled by a single programmable controller while reducing the amount of dedicated safety hardware required.

Operating from a 24 V DC supply and supporting AS-i, Pluto Safety Bus, MODBUS ASCII and StatusBus communication, the controller is suitable for distributed and networked machine safety systems. Its compact 90 × 84 × 120 mm enclosure is designed for DIN-rail installation inside control panels, while safety functions can achieve performance levels up to PL e when correctly engineered and validated.

Key Advantages

• 42 total I/O provides substantial capacity for complex machine safety applications.
• Combines AS-i bus and Pluto Safety Bus communication within one safety PLC.
• 20 dedicated failsafe inputs support direct connection of numerous safety devices.
• 16 configurable I/O points can operate as non-failsafe outputs or failsafe inputs.
• Provides 4 failsafe relay outputs plus 2 failsafe transistor outputs.
• Programmable using ABB Pluto Manager software for flexible safety logic configuration.
• Compact 90 mm-wide DIN-rail format helps conserve control-panel space.

Key Features

• ABB Jokab Safety Pluto series.
• Programmable safety controller / safety PLC.
• Integrated AS-Interface safety bus.
• Integrated Pluto Safety Bus.
• 42 total I/O.
• 20 failsafe inputs.
• 16 non-failsafe outputs / failsafe inputs.
• 4 individually failsafe relay outputs.
• 2 individually failsafe transistor outputs.
• Supports MODBUS ASCII, Pluto Safety Bus, AS-i and StatusBus.
• 24 V DC control supply.
• DIN-rail mounting with screw-terminal connections.
• Programmable through ABB Pluto Manager.

Flexible Programmable Control for Machine Safety Systems

ABB Pluto safety PLCs are designed to allow safety devices such as emergency stops, safety switches, non-contact sensors, light curtains and other protective equipment to be incorporated into programmable machine safety functions. The Pluto B42 AS-i extends this capability with AS-Interface connectivity, allowing compatible AS-i safety devices and distributed I/O to be integrated alongside conventional safety circuits.

The combination of 20 failsafe inputs, 16 configurable I/O points and six individually failsafe outputs provides substantial flexibility for machinery with multiple safety zones and functions. Pluto Safety Bus communication also enables multiple Pluto controllers to exchange safety-related information, supporting scalable architectures for larger machines and interconnected production equipment.

Typical Applications

• Automated production and assembly machinery.
• AS-i Safety at Work installations.
• Robotic cells and automated manufacturing systems.
• Conveyors and material-handling equipment.
• Packaging and processing machinery.
• Multi-zone machine safety control systems.
