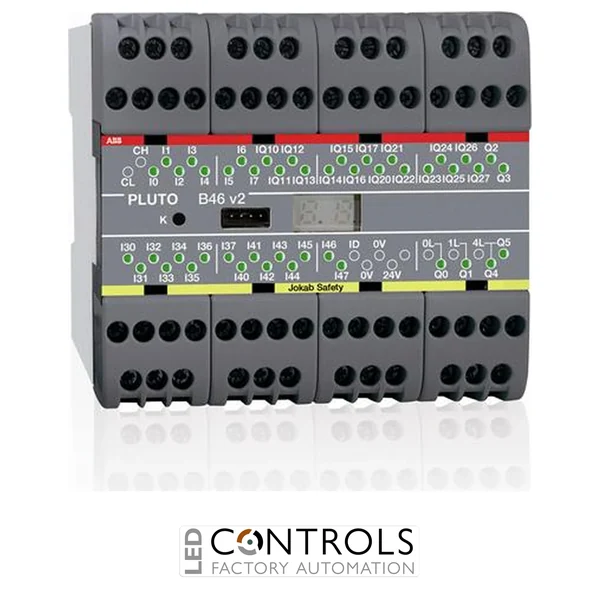

ABB pluto b46 v2 abb safety controller

Why Choose the ABB Pluto B46 v2 2TLA020070R1700 Safety Controller?

The ABB Pluto B46 v2 2TLA020070R1700 is a compact and powerful programmable safety controller / safety PLC developed for advanced industrial machine safety applications. Part of the ABB Jokab Safety Pluto family, it combines extensive safety I/O with the Pluto Safety Bus, allowing multiple safety functions and devices to be managed within a flexible programmable architecture.

The Pluto B46 v2 provides a total of 46 I/O, comprising 24 failsafe inputs, 16 configurable non-failsafe outputs/failsafe inputs, 4 individually failsafe relay outputs and 2 individually failsafe transistor outputs. This high I/O capacity makes the controller particularly suitable for machinery with multiple emergency stops, guard switches, safety sensors and other protective devices.

Operating from a 24 V DC supply, the Pluto B46 v2 supports Pluto Safety Bus, MODBUS ASCII and StatusBus communication and is programmed using ABB Pluto Manager software. Its compact 90 × 84 × 120 mm enclosure provides substantial safety-control capability while conserving control-panel space, with safety functions capable of achieving up to PL e and SIL 3 when correctly designed and validated.

Key Advantages

• 46 total I/O provides extensive capacity for sophisticated machine safety systems.
• 24 dedicated failsafe inputs support direct connection of numerous safety devices.
• 16 configurable I/O points can function as non-failsafe outputs or failsafe inputs.
• Provides 4 individually failsafe relay outputs and 2 individually failsafe transistor outputs.
• Integrated Pluto Safety Bus enables safety-related communication between compatible Pluto controllers.
• Programmable using ABB Pluto Manager for flexible implementation of machine safety logic.
• Compact 90 mm-wide design provides high I/O density while conserving valuable panel space.

Key Features

• ABB Jokab Safety Pluto series.
• Programmable safety controller / safety PLC.
• 46 total I/O points.
• 24 failsafe inputs.
• 16 non-failsafe outputs / failsafe inputs.
• 4 individually failsafe relay outputs.
• 2 individually failsafe transistor outputs.
• Integrated Pluto Safety Bus.
• Supports MODBUS ASCII, Pluto Safety Bus and StatusBus.
• 24 V DC supply voltage.
• Screw connection terminals.
• Compact DIN-rail mounting format.
• Programmable with ABB Pluto Manager.
• Safety capability up to PL e / SIL 3.

Flexible Programmable Control for Complex Machine Safety

The ABB Pluto architecture enables numerous machine safety devices to be incorporated into programmable safety functions rather than requiring a separate safety relay for every individual function. The Pluto B46 v2 offers 24 dedicated failsafe inputs alongside 16 configurable I/O points, allowing emergency stops, guard switches, safety sensors and other protective equipment to be integrated into a central safety-control strategy.

For larger installations, Pluto Safety Bus allows compatible Pluto controllers to exchange safety-related information, supporting distributed safety architectures across machinery and production lines. With six individually failsafe outputs, flexible programming through Pluto Manager and safety capability up to PL e and SIL 3, the B46 v2 is well suited to applications requiring both high I/O capacity and scalable safety control.

Typical Applications

• Automated production and assembly machinery.
• Robotic cells and manufacturing systems.
• Multi-zone machine safety control.
• Packaging and processing equipment.
• Conveyor and material-handling systems.
• Complex machinery with multiple safety devices and protective functions.
