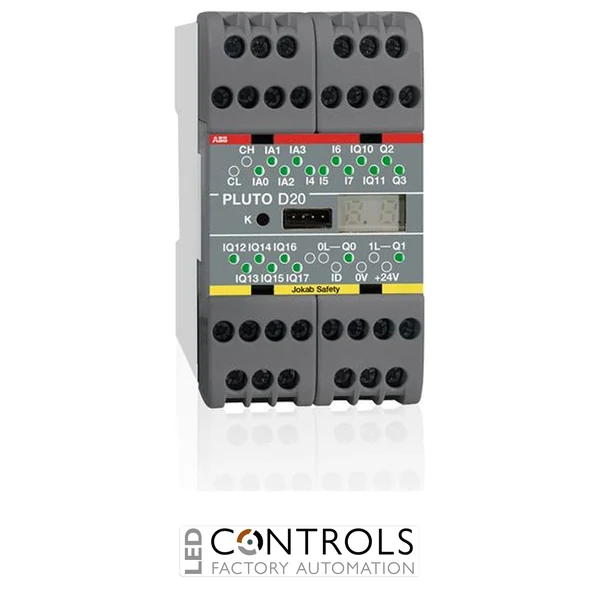

ABB pluto d20 abb safety controller

Why Choose the ABB Pluto D20 2TLA020070R6400 Safety Controller?

The ABB Pluto D20 2TLA020070R6400 is a compact and powerful programmable safety controller / safety PLC designed for advanced machine safety and industrial automation applications. As part of the established ABB Pluto safety PLC series, the D20 combines configurable failsafe digital I/O with analogue safety inputs, allowing a wide range of safety devices and process signals to be integrated into a single programmable safety system.

The Pluto D20 provides 20 I/O, including four combined failsafe analogue and digital inputs, four additional failsafe inputs, eight configurable non-failsafe outputs / failsafe inputs, two individually failsafe relay outputs and two individually failsafe transistor outputs. Its analogue inputs support 0–10 V and 4–20 mA signals, making the controller particularly useful for safety applications requiring analogue monitoring alongside conventional digital safety devices.

Operating from a 24 V DC supply, the Pluto D20 supports the ABB Pluto safety bus and can be programmed using Pluto Manager software. Its compact 84 mm × 45 mm × 120 mm enclosure and 0.39 kg weight make it well suited to DIN-rail installation in industrial control cabinets where space, flexibility and high-level functional safety are important.

Key Advantages

• Compact programmable safety PLC with integrated analogue safety inputs.
• 20 I/O for flexible machine safety control and monitoring.
• Four combined failsafe analogue and digital inputs supporting 0–10 V / 4–20 mA signals.
• Integrated Pluto safety bus for distributed safety control applications.
• Supports safety applications up to PL e / Category 4 and SIL 3.
• Programmable using ABB Pluto Manager software for customised safety logic.

Key Features

• ABB Pluto D20 programmable safety controller.
• 20 total I/O.
• 4 combined failsafe analogue and digital inputs.
• 4 additional failsafe digital inputs.
• 8 non-failsafe outputs / failsafe inputs.
• 2 individually failsafe relay outputs.
• 2 individually failsafe transistor outputs.
• Analogue input range of 0–10 V / 4–20 mA.
• 24 V DC operating voltage.
• Integrated Pluto safety bus using CAN-based communication.
• Supports up to 32 Pluto units on the safety bus.
• Compact 35 mm DIN-rail mounting design.

Advanced Safety Control with Analogue Monitoring

Programmable safety controllers such as the ABB Pluto D20 allow multiple machine safety functions to be managed through configurable safety logic instead of relying on numerous individual safety relays. The D20 extends this flexibility with combined analogue and digital failsafe inputs, allowing safety-related analogue signals to be monitored alongside emergency stops, safety switches, light curtains and other protective devices.

The Pluto safety bus also enables multiple Pluto controllers to exchange safety-related information across a distributed machine or production system. Combined with Pluto Manager programming, this architecture gives machine builders and automation engineers a flexible platform for creating sophisticated safety systems while supporting functional safety levels up to PL e / Category 4 and SIL 3.

Typical Applications

• Industrial machinery safety systems.
• Safety-related analogue signal monitoring.
• Emergency stop and safety switch monitoring.
• Safety light curtains and sensor systems.
• Packaging and production machinery.
• Conveyor and material handling systems.
• Robot cells and automated manufacturing equipment.
• Process machinery requiring 0–10 V or 4–20 mA safety monitoring.
• OEM machine building and distributed industrial safety systems.
