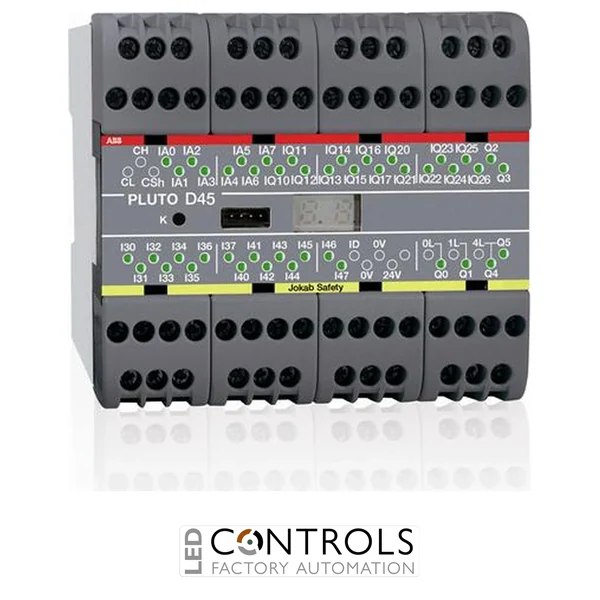

ABB pluto d45 abb safety controller

Why Choose the ABB Pluto D45 Safety Controller?

The ABB Pluto D45 (2TLA020070R6600) is a powerful and compact programmable safety controller (Safety PLC) designed for advanced machine safety applications requiring digital, analogue and high-speed counter inputs. As part of the ABB Pluto safety PLC range, it combines extensive safety I/O with Pluto safety bus communication for flexible integration into industrial machinery and automation systems.

The Pluto D45 provides 45 total I/O, comprising 8 combined failsafe analogue and digital inputs, 16 failsafe inputs, 15 configurable non-failsafe outputs/failsafe inputs, 4 individually failsafe relay outputs and 2 individually failsafe transistor outputs. Its analogue channels support 0–10 V and 4–20 mA signals, while four counter inputs provide additional flexibility for applications requiring safety-related speed or movement monitoring.

Operating from a 24 V DC supply, the Pluto D45 supports Pluto Safety Bus, StatusBus and MODBUS ASCII communication. Its compact 84 × 90 × 120 mm format, DIN-rail mounting and programmable architecture make it suitable for sophisticated machine safety systems where numerous protective devices and safety functions must be coordinated within a single controller.

Key Advantages

• Powerful programmable safety PLC for complex machine safety applications.
• 45 total I/O provides extensive connectivity for safety devices and machine signals.
• 8 combined failsafe analogue and digital inputs support flexible signal monitoring.
• Analogue inputs support 0–10 V and 4–20 mA signals.
• 4 high-speed counter inputs support applications requiring counter functionality.
• Provides 4 individually failsafe relay outputs and 2 individually failsafe transistor outputs.
• Integrated Pluto Safety Bus enables distributed safety architectures.
• Supports safety applications up to Performance Level e (PL e) and SIL 3.

Key Features

• ABB Pluto D45 programmable safety controller.
• 24 V DC rated control supply voltage.
• 45 total I/O.
• 8 combined failsafe analogue and digital inputs.
• 16 dedicated failsafe inputs.
• 15 configurable non-failsafe outputs/failsafe inputs.
• 4 individually failsafe relay outputs.
• 2 individually failsafe transistor outputs.
• 8 analogue inputs supporting 0–10 V / 4–20 mA signals.
• 4 counter inputs.
• Integrated Pluto Safety Bus and StatusBus communication.
• MODBUS ASCII communication support.
• Programming and configuration with ABB Pluto Manager.
• Compact DIN-rail mounting format with screw connections.

Advanced Safety Control with Analogue and Counter Inputs

Programmable safety controllers such as the ABB Pluto D45 allow numerous safety devices and machine signals to be integrated into a coordinated programmable safety system. Its combination of failsafe digital inputs, analogue inputs and counter inputs makes the D45 particularly useful for applications requiring more sophisticated monitoring than conventional safety relay systems.

The Pluto D45 can communicate with other compatible devices through the Pluto Safety Bus, while ABB Pluto Manager provides the software environment for developing and maintaining application-specific safety logic. This combination enables machine builders and automation engineers to implement scalable safety systems for complex machinery and automated production equipment.

Typical Applications

• Complex industrial machine safety systems.
• Safety-related speed and movement monitoring.
• Emergency stop and safety guard monitoring.
• Light curtains, safety sensors and interlocking devices.
• Packaging and processing machinery.
• Conveyor and material handling systems.
• Robotic and automated manufacturing cells.
• OEM machinery and integrated production systems.
