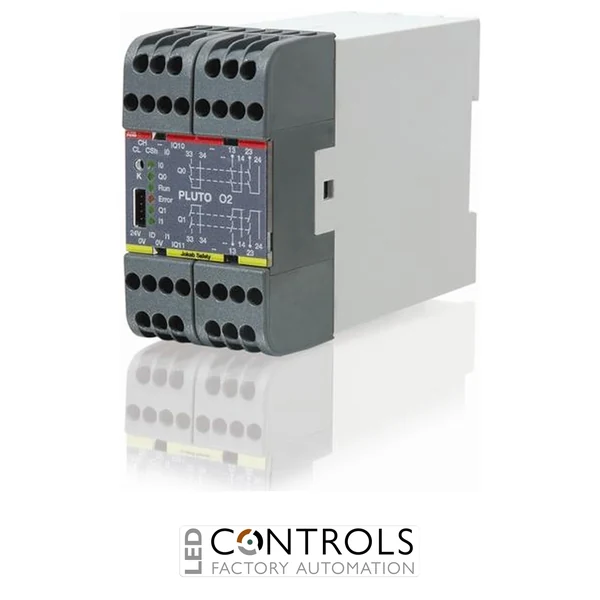

ABB Pluto O2 2TLA020070R8500 is a compact 24 V DC safety PLC output module with six I/O, two individually failsafe relay outputs and Pluto Safety Bus communication for expanding industrial machine safety systems.
£755.70
The ABB Pluto O2 (2TLA020070R8500) is a compact safety PLC output module designed to expand the failsafe output capability of ABB Pluto machine safety systems. As part of the ABB Pluto programmable safety controller range, it communicates over the Pluto Safety Bus and provides additional monitored inputs and failsafe relay outputs for industrial machinery and automation safety applications.
The Pluto O2 provides 6 I/O, comprising 2 failsafe inputs for monitoring, 2 configurable non-failsafe outputs/failsafe inputs and 2 individually failsafe relay outputs. Each failsafe relay output provides three contacts, making the module particularly useful where additional safety-related switching outputs are required within a Pluto-based safety system.
Operating from a 24 V DC supply, the Pluto O2 features screw connections and DIN-rail mounting for straightforward installation inside industrial control cabinets. Its compact 84 × 45 × 120 mm dimensions and integration with the Pluto Safety Bus make it an efficient way to extend the output capability of distributed machine safety installations.
Safety output modules such as the ABB Pluto O2 extend the switching capability of a programmable machine safety system without requiring a separate standalone safety controller. Its monitoring inputs and failsafe relay outputs allow additional safety-related equipment to be incorporated into a Pluto installation while retaining communication through the common safety bus.
The Pluto O2 is particularly suited to distributed safety architectures where additional relay outputs are required away from the main Pluto controller. Integration through the Pluto Safety Bus allows machine builders and automation engineers to develop flexible safety systems for machinery, production lines and automated manufacturing equipment.
| Manufacturer | ABB |
|---|---|
| Series | Pluto |
| Model | Pluto O2 |
| Part number | 2TLA020070R8500 |
| Product type | Safety PLC output module / Programmable safety controller |
| Supply voltage | 24 V DC |
| Total I/O | 6 |
| Failsafe monitoring inputs | 2 |
| Configurable I/O | 2 non-failsafe outputs / failsafe inputs |
| Failsafe relay outputs | 2 |
| Relay contacts | 3 contacts per failsafe relay output |
| Safety bus | Pluto Safety Bus |
| Communication protocols | Pluto Safety Bus, StatusBus, MODBUS ASCII |
| Performance level | Up to PL e |
| Diagnostic coverage | High |
| Connection type | Screw connection |
| Conductor cross-section | 0.34–4 mm² |
| Mounting type | DIN rail |
| Height | 84 mm |
| Width | 45 mm |
| Depth | 120 mm |
| Weight | 0.39 kg |
| HS Code | 85371091 |
| Country of Manufacture | Sweden |
The Pluto O2 is a safety PLC output module used to add monitored inputs and failsafe relay outputs to ABB Pluto machine safety systems.
The Pluto O2 provides 6 total I/O: 2 failsafe monitoring inputs, 2 configurable non-failsafe outputs/failsafe inputs and 2 individually failsafe relay outputs.
The module provides 2 individually failsafe relay outputs, with each relay output providing three contacts.
The ABB Pluto O2 operates from a 24 V DC supply, making it suitable for standard industrial control and machine safety installations.
Yes. The Pluto O2 includes Pluto Safety Bus communication and is specifically designed for integration with ABB Pluto programmable safety systems.
The Pluto O2 is primarily a safety output expansion module for a Pluto system, providing additional monitoring inputs and failsafe relay outputs through the Pluto Safety Bus.
The Pluto O2 is suitable for machine safety functions requiring performance levels up to PL e when correctly incorporated into the complete safety system.
The module measures 84 mm high, 45 mm wide and 120 mm deep and weighs approximately 0.39 kg.
ABB Pluto safety controllers and expansion modules provide machine builders, system integrators and automation engineers with a flexible platform for implementing distributed safety functions across industrial machinery and automated production systems.
