Why Choose the ABB 2TLA020071R8200 GATE-D2 Pluto Gateway?

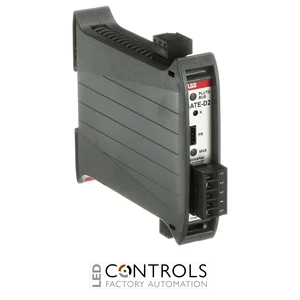

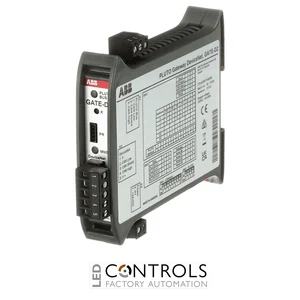

The ABB 2TLA020071R8200, designated GATE-D2, is a dedicated Pluto Gateway for DeviceNet designed to provide two-way communication between the ABB Pluto Safety Bus and DeviceNet networks. Classified within the Safety PLC product group, it enables Pluto safety controllers to communicate with other compatible control systems and form part of a larger industrial automation network.
The GATE-D2 incorporates electrically isolated Pluto Safety Bus CAN and DeviceNet CAN interfaces. The Pluto Safety Bus supports communication speeds from 100 to 1000 kbit/s with automatic speed detection, while the DeviceNet interface supports 125, 250 and 500 kbit/s. DeviceNet node addresses from 1 to 63 can be selected using the module's DIP switches.
Operating from a nominal 24 V DC supply, the GATE-D2 is designed for standard 35 mm DIN-rail mounting inside industrial control panels. Its compact 22.5 mm-wide housing, included bus and power terminals, and dedicated LED status indication make it a practical interface for integrating ABB Pluto systems with established DeviceNet automation networks.
Key Advantages
- Provides two-way communication between the Pluto Safety Bus and DeviceNet.
- Allows ABB Pluto controllers to exchange information with compatible DeviceNet control systems.
- Electrically isolated Pluto Safety Bus CAN and DeviceNet CAN interfaces.
- Automatic Pluto Safety Bus speed detection simplifies network configuration.
- Selectable 125, 250 and 500 kbit/s DeviceNet speeds.
- Compact 22.5 mm-wide DIN-rail design conserves control-panel space.
Key Features
- ABB GATE-D2 Pluto Gateway DeviceNet.
- ABB order code 2TLA020071R8200.
- Bidirectional gateway between Pluto Safety Bus and DeviceNet.
- Pluto Safety Bus speeds of 100, 200, 250, 400, 500, 800 and 1000 kbit/s.
- Automatic Pluto Safety Bus speed detection.
- DeviceNet speeds of 125, 250 and 500 kbit/s, selected via DIP switch.
- DeviceNet node addressing from 1 to 63 via DIP switches.
- ODVA DeviceNet Version 2.0.

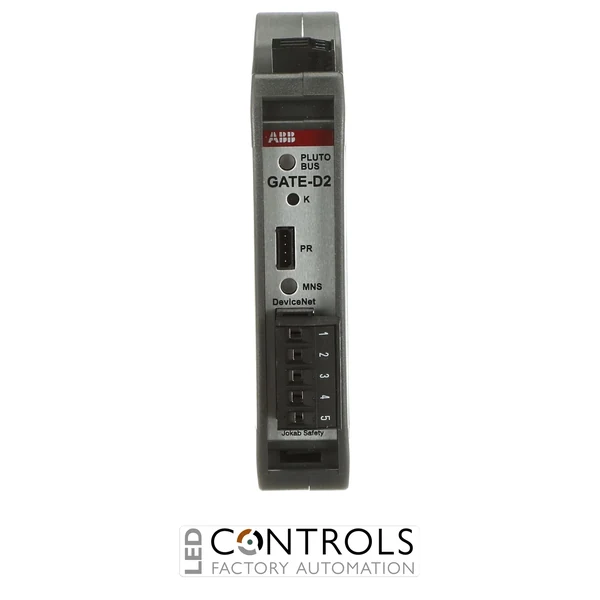

- Dedicated LED indication for Pluto Safety Bus and DeviceNet status.
- 24 V DC nominal operating voltage.
Reliable DeviceNet Integration for Pluto Safety Systems
The ABB GATE-D2 acts as an interface between the Pluto Safety Bus and a DeviceNet network, allowing information to be transferred in both directions between the two systems. This enables Pluto safety controllers to participate in broader machine-control architectures where DeviceNet is used for communication with PLCs and other automation equipment.
The gateway uses the common Pluto interface, allowing established Pluto cabling and Pluto Manager software to be used for servicing and, where necessary, programming. Separate electrically isolated CAN interfaces help provide a clear communication boundary between the Pluto Safety Bus and DeviceNet sides of the installation.
Typical Applications
- Connecting ABB Pluto Safety PLC networks to DeviceNet systems.
- Machine-safety and supervisory PLC integration.
- Industrial automation network interfacing.
- Production and assembly machinery.
- Material handling and automated manufacturing equipment.
- Retrofit integration of Pluto controllers into DeviceNet installations.
