Why Choose the ABB 2TLA020071R9100 GATE-EC Ethernet Gateway?

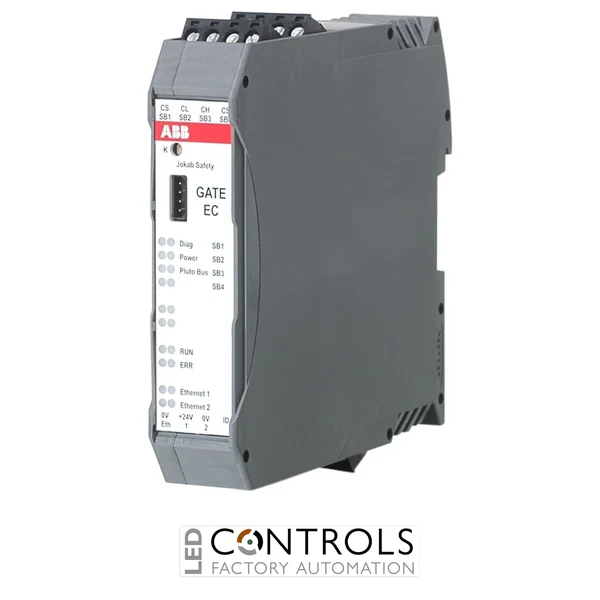

The ABB 2TLA020071R9100, model GATE-EC, is a dedicated EtherCAT Ethernet gateway for ABB Pluto Safety PLC systems. It provides two-way communication between the Pluto Safety Bus and an EtherCAT industrial Ethernet network, enabling Pluto information to be exchanged with compatible automation and supervisory control systems.
The GATE-EC provides a 100 Mbit/s EtherCAT interface and supports a minimum EtherCAT cycle time of 500 µs. Two screened RJ45 Ethernet connections provide the physical network interface, while a separate four-pole terminal connects the gateway to the Pluto Safety Bus. Automatic Pluto bus-speed detection supports communication rates from 100 to 1000 kbit/s.
Operating from a nominal 24 V DC supply, the GATE-EC is designed for installation on a standard 35 mm DIN rail. Its compact 22.5 mm-wide enclosure, IP20 protection, LED status indication and integrated web-server functionality make it a practical interface for machinery combining ABB Pluto functional-safety control with EtherCAT-based automation.
Key Advantages
- Dedicated EtherCAT gateway for ABB Pluto Safety PLC systems.
- Provides two-way communication between the Pluto Safety Bus and Ethernet.
- 100 Mbit/s EtherCAT interface for high-speed industrial communication.
- Minimum EtherCAT cycle time of 500 µs.
- Automatic detection of Pluto Safety Bus communication speeds from 100 to 1000 kbit/s.
- Two screened RJ45 Ethernet connections simplify EtherCAT network integration.
- Integrated web server supports status viewing, IP-address configuration and software updates.
- Compact 35 mm DIN-rail mounting for industrial control cabinets.
Key Features
- ABB Safety PLC product group.
- GATE-EC model designation.
- ABB order code 2TLA020071R9100.
- Ethernet gateway for EtherCAT.
- Two-way communication between Pluto Safety Bus and Ethernet.
- EtherCAT 100 Mbit/s communication.
- 500 µs minimum EtherCAT cycle time.
- Pluto Safety Bus CAN interface with automatic speed detection.
- Two screened RJ45 Ethernet connections.
- Front PC port for servicing and programming functions.
- Integrated web server and TCP/IP terminal-server functionality.
- LED indication for Pluto Safety Bus and EtherCAT status.
- 24 V DC operating voltage.
- IP20 enclosure classification.
Reliable EtherCAT Integration for ABB Pluto Safety Systems
Industrial machinery often requires information from its functional-safety system to be available to the wider automation architecture. The ABB GATE-EC provides the communication interface between the Pluto Safety Bus and EtherCAT, allowing Pluto status and operating information to be exchanged with compatible control systems while Pluto continues to perform the safety-related control functions.
With its 100 Mbit/s EtherCAT interface, 500 µs minimum cycle time, automatic Pluto bus-speed detection and integrated diagnostic functions, the GATE-EC provides a practical solution for high-performance machinery using EtherCAT automation. The common Pluto interface also enables established Pluto cabling and Pluto Manager software to be used for servicing and, where required, programming.
Typical Applications
- ABB Pluto Safety PLC systems.
- EtherCAT industrial automation networks.
- Communication between Pluto systems and EtherCAT controllers.
- Machine-status and diagnostic data exchange.
- High-speed automated production machinery.
- Packaging and processing equipment.
- Material-handling and conveyor systems.
- Robotics and automated manufacturing equipment.
- OEM machinery combining functional safety and EtherCAT automation.
