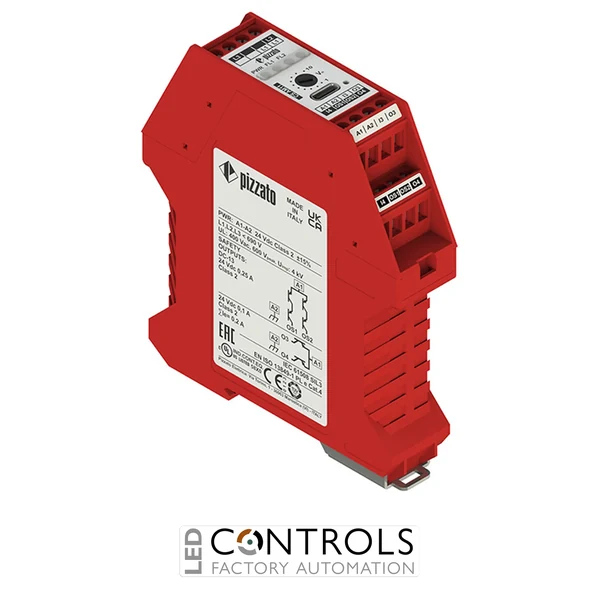

Why Choose the Pizzato CS AM11P1VU Motor Standstill Detection Safety Module?
The Pizzato CS AM11P1VU is an advanced motor standstill detection safety module designed to monitor the safe stopping condition of electric motors in industrial machinery and automation systems. As part of the Pizzato CS AM safety module series, it provides reliable safety monitoring by detecting residual motor voltage and allowing safe access to machinery once standstill has been confirmed.
The CS AM11P1VU uses sensorless monitoring technology, measuring the residual voltage generated by rotating motors to determine whether the motor has reached a safe standstill condition. This eliminates the need for additional speed sensors in many applications while supporting advanced machine safety functions.
With a 24 V DC supply, 2 OSSD safety outputs and a compact 22.5 mm housing width, the CS AM11P1VU is suitable for integration into modern machine safety circuits requiring dependable motor standstill monitoring.
Key Advantages
- Compact safety module for motor standstill detection.
- Sensorless monitoring technology detects motor stop condition using residual voltage measurement.
- 2 OSSD electronic safety outputs for connection to safety control systems.
- Supports advanced machine safety applications up to SIL 3 / PL e.
- Narrow 22.5 mm housing design saves valuable control cabinet space.
- Suitable for single-phase and three-phase motor monitoring applications.
Key Features
- Pizzato CS AM1 series safety module.
- Motor standstill detection function.
- 24 V DC supply voltage.
- 2 OSSD semiconductor safety outputs.
- Residual voltage measurement of motor phases.
- Compatible with single-phase and three-phase electric motors.
- Compact DIN rail mounting design.
- Connector with screw terminals for industrial wiring.
Reliable Motor Safety Monitoring for Industrial Machinery
The Pizzato CS AM11P1VU improves machine safety by ensuring that hazardous motor movement has stopped before access or maintenance operations are permitted. By monitoring residual voltage generated by motor windings, the module provides dependable standstill detection without requiring external rotation sensors.
Designed for machine builders and industrial automation engineers, the CS AM series combines compact installation, advanced diagnostics and reliable safety performance for demanding production environments.
Typical Applications
- Machine safety circuits requiring motor standstill detection.
- Industrial machinery with hazardous rotating components.
- Access protection for motors and mechanical systems.
- Production lines and automated equipment.
- Pumps, conveyors and processing machinery.
- OEM machine safety applications.
