Why Choose the Pizzato CS AM11P1XU Safety Module?

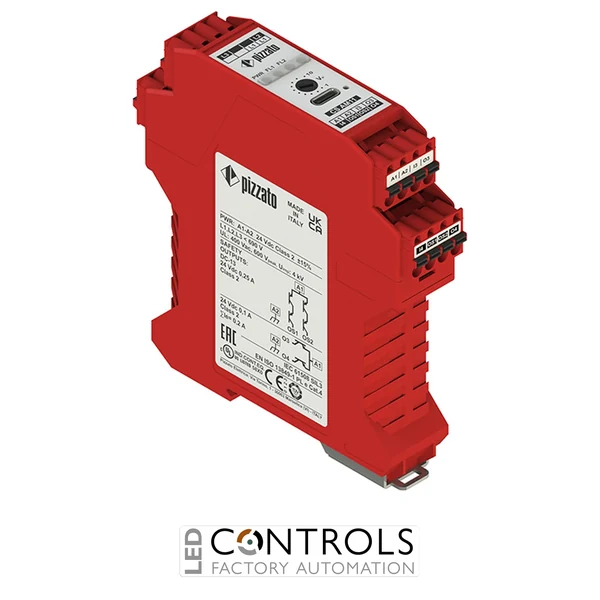

The Pizzato CS AM11P1XU, also referenced as CSAM11P1XU, is a CS AM series safety module for motor standstill detection, designed for safety-related monitoring in industrial machinery and automation systems. It detects when a connected motor has reached a safe standstill condition, allowing this information to be incorporated into machine guarding, access control and other functional safety circuits.
Designed for demanding machine safety applications, the CS AM11P1XU supports safety functions up to Category 4, SIL 3 and PL e. The module provides 2 OSSD safety outputs, allowing safe status information to be interfaced with suitable safety-related control equipment.
The module operates from a 24 V DC supply and is programmable via a USB port, providing flexibility when configuring the standstill monitoring function for the application. Electrical installation is simplified through a connector with spring terminals, providing secure and maintenance-friendly connections within industrial control panels.
Key Advantages
- Dedicated motor standstill detection for safety-related machinery applications.
- Supports safety functions up to Category 4, SIL 3 and PL e.
- Provides 2 OSSD safety outputs for integration into safety control systems.
- USB programmable configuration supports application-specific setup.
- Standard 24 V DC supply suits industrial control-panel installations.
- Spring-terminal connector enables secure and convenient field wiring.
- Part of Pizzato's CS AM single-function safety module family.
Key Features
- Pizzato Elettrica CS AM series.
- Single-function safety module.
- Dedicated motor standstill monitoring.
- Safety performance up to Category 4.
- Safety Integrity Level up to SIL 3.
- Performance Level up to PL e.
- 2 OSSD outputs.
- Programmable via USB port.
- 24 V DC supply voltage.
- Connector with spring terminals.
- Designed for industrial machine safety circuits.
- Manufacturer part number CS AM11P1XU.
- Alternative SKU CSAM11P1XU.
- EAN: 8018851664182.
Reliable Motor Standstill Monitoring for Machine Safety
Motor standstill monitoring is important in machinery where access to hazardous areas must remain restricted until rotating or moving equipment has completely stopped. The Pizzato CS AM11P1XU is designed specifically for this purpose, providing safety-related detection of the motor standstill condition rather than relying solely on a conventional timer or operator judgement.
With safety performance up to Category 4, SIL 3 and PL e, the module can form part of high-integrity machine safety architectures when correctly integrated and configured. Its 2 OSSD outputs provide electronic safety signals for compatible control equipment, while USB programmability enables the module to be configured to suit the requirements of the monitored motor and machine.
Typical Applications
- Motor standstill safety monitoring.
- Machine guard access control systems.
- Rotating machinery safety circuits.
- Industrial machine tools.
- Automated manufacturing equipment.
- Conveyors and material-handling machinery.
- Safety-related motor monitoring systems.
- Industrial automation and machinery control panels.
