Why Choose the Pizzato CS AM22P1VU Safety Module?

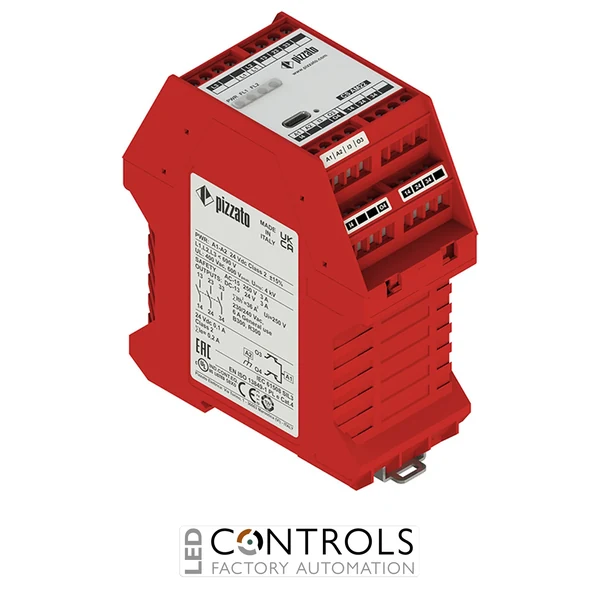

The Pizzato CS AM22P1VU is a programmable motor monitoring safety module designed for safety-related monitoring of motor speed and direction of rotation in industrial machinery. Part of the advanced Pizzato CS AM series, it combines motor monitoring functions with configurable parameters for integration into modern machine safety and automation systems.
The CS AM22P1VU provides three normally open (3 NO) safety relay contacts and is designed for safety applications up to Category 4, SIL 3 and PL e when correctly incorporated into an appropriate safety architecture. The CS AM2 series can monitor motor speed and direction of rotation using the electrical characteristics of the connected motor, with support for an additional proximity sensor where required for diagnostic monitoring.
Operating from a 24 V DC supply, the CS AM22P1VU is a programmable version of the CS AM platform and can be configured using the Pizzato CS AM Configurator software. This allows operating parameters to be adapted to the motor and machinery application, while the 45 mm wide housing provides a compact solution for installation within industrial control panels.
Key Advantages
- Advanced motor speed and direction-of-rotation monitoring for machinery safety.
- Programmable configuration allows operating parameters to be adapted to the application.
- Safety capability up to Category 4, SIL 3 and PL e.
- Three normally open safety relay contacts for safety-related switching.
- 24 V DC supply suits standard industrial safety and automation systems.
- Supports sensorless monitoring and operation with a proximity sensor.
- Compact 45 mm wide housing for control-panel installation.
Key Features
- Pizzato CS AM series programmable safety module.
- Designed for motor speed detection.
- Supports motor direction-of-rotation detection.
- 3 NO safety relay outputs.
- 24 V DC rated supply voltage.
- Safety performance up to SIL 3.
- Performance Level up to PL e.
- Safety category up to Category 4.
- Programmable using Pizzato CS AM Configurator software.
- Supports sensorless motor monitoring.
- Proximity-sensor input available for additional monitoring and diagnostics.
- Galvanic separation between control and measurement circuits.
- Suitable for monitoring single-phase and three-phase motors.
- 45 mm wide housing.
Reliable Motor Monitoring for Machine Safety
Monitoring motor operating conditions is important where machinery safety functions depend on the speed or direction of rotating equipment. The Pizzato CS AM22P1VU provides safety-related motor monitoring that can be incorporated into machine control systems to determine whether defined operating conditions have been reached before associated safety actions are permitted.
The programmable CS AM platform allows operating parameters to be configured for the characteristics of the machine and motor. Sensorless monitoring reduces the need for external sensing components, while an additional proximity sensor can be incorporated where transmission-component diagnostics or supplementary monitoring is required.
Typical Applications
- Industrial motor speed safety monitoring.
- Direction-of-rotation monitoring systems.
- Machine tools and rotating machinery.
- Conveyors and material handling equipment.
- Packaging and processing machinery.
- Automated production and assembly equipment.
- Industrial machine safety control panels.
