CS AM series safety module configurable for monitoring electric motor standstill, speed, and direction of rotation. Programmable via USB port, features 2 OSSD outputs, screw terminal connections, and certified to Cat. 4, SIL 3, PL e for advanced industrial safety solutions. Certified with EAC, EU Type examination, TÜV SÜD, UE Declaration of Conformity, and UKCA Declaration of Conformity.
£702.00

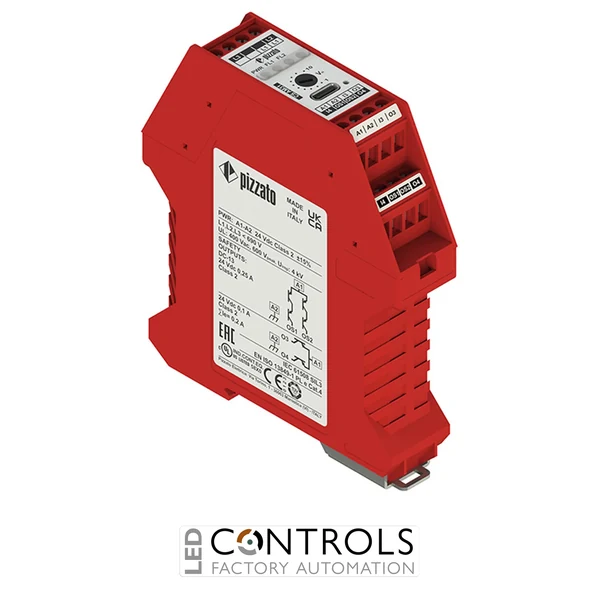

The Pizzato CSAM31P1VU is an advanced CS AM series safety module designed for comprehensive motor standstill, speed and direction of rotation monitoring in industrial automation and machine safety applications. Manufactured by Pizzato Elettrica, this compact safety device combines multiple motor monitoring functions into a single intelligent module, helping machine builders improve safety performance and simplify system integration.
The CSAM31P1VU uses sensorless motor monitoring technology by directly analysing motor phase signals and residual voltage. This enables detection of motor standstill, monitoring of rotational speed and verification of direction of rotation without requiring additional speed sensors, reducing installation complexity and wiring requirements.
With programmable configuration via USB, two OSSD electronic safety outputs and a 24 V DC supply, the Pizzato CSAM31P1VU provides a flexible solution for modern industrial safety systems requiring accurate motor supervision and advanced diagnostics.
The Pizzato CSAM31P1VU provides complete supervision of electric motor operation by combining standstill detection, speed monitoring and direction-of-rotation verification. These functions allow machinery to safely manage access conditions, maintenance procedures and hazardous movements.
The CS AM3 series is designed for applications requiring multiple safety functions from one module. Through configurable parameters, engineers can adapt module behaviour to different industrial requirements while benefiting from real-time monitoring and improved diagnostics.
| HS Code | 85369095 |
|---|
The CSAM31P1VU is used for monitoring motor standstill, speed and direction of rotation in industrial machine safety applications.
The module combines motor standstill detection, speed monitoring and direction-of-rotation monitoring in one safety device.
The module supports safety applications up to Category 4, SIL 3 and Performance Level e.
Yes, the CSAM31P1VU can be configured using the CS AM Configurator software through the USB communication port.
The CSAM31P1VU operates using a 24 V DC supply.
Pizzato CS AM safety modules provide intelligent motor monitoring solutions that help machine builders achieve advanced safety performance, reliable diagnostics and efficient industrial automation integration.{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato CSAM31P1VU CS AM Safety Module Motor Standstill Speed Detection", "sku": "CSAM31P1VU", "mpn": "CSAM31P1VU", "brand": { "@type": "Brand", "name": "Pizzato" }, "category": "Safety Modules", "description": "Pizzato CSAM31P1VU CS AM series safety module for motor standstill, speed and direction of rotation monitoring with programmable USB configuration and OSSD outputs.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Safety function", "value": "Motor standstill, speed and direction monitoring" }, { "@type": "PropertyValue", "name": "Safety level", "value": "Category 4, SIL 3, PL e" }, { "@type": "PropertyValue", "name": "Supply voltage", "value": "24 V DC" }, { "@type": "PropertyValue", "name": "Safety outputs", "value": "2 OSSD outputs" }, { "@type": "PropertyValue", "name": "Connection", "value": "Screw terminals" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Pizzato CSAM31P1VU used for?", "acceptedAnswer": { "@type": "Answer", "text": "The CSAM31P1VU is used for monitoring motor standstill, speed and direction of rotation in industrial machine safety applications." } }, { "@type": "Question", "name": "What safety functions does this module provide?", "acceptedAnswer": { "@type": "Answer", "text": "The module combines motor standstill detection, speed monitoring and direction-of-rotation monitoring in one safety device." } }, { "@type": "Question", "name": "What safety level does the CSAM31P1VU support?", "acceptedAnswer": { "@type": "Answer", "text": "The module supports safety applications up to Category 4, SIL 3 and Performance Level e." } }, { "@type": "Question", "name": "Can the module be programmed?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the CSAM31P1VU can be configured using the CS AM Configurator software through the USB communication port." } }, { "@type": "Question", "name": "What power supply is required?", "acceptedAnswer": { "@type": "Answer", "text": "The CSAM31P1VU operates using a 24 V DC supply." } } ] }
