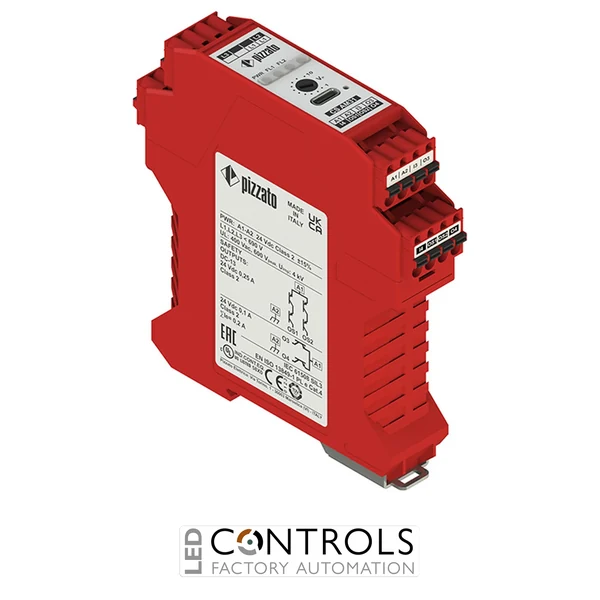

Why Choose the Pizzato CS AM31P1XU Motor Standstill Detection Safety Module?
The Pizzato CS AM31P1XU is an advanced motor standstill detection safety module designed to monitor the safe stopping condition of electric motors in industrial machinery and automation systems. As part of the Pizzato CS AM safety module series, it provides reliable safety monitoring by detecting residual motor voltage and confirming when hazardous movement has stopped before access or maintenance operations are permitted.
The CS AM31P1XU uses sensorless motor monitoring technology, measuring the residual voltage generated by rotating motors to determine standstill conditions. The CS AM3 series supports motor standstill detection and configurable safety functions, allowing flexible integration into modern machine safety systems.
With a 24 V DC supply, 2 OSSD safety outputs and a compact 22.5 mm housing width, the CS AM31P1XU is suitable for industrial control cabinets requiring dependable motor standstill monitoring and advanced safety integration.
Key Advantages
- Compact safety module for motor standstill detection.
- Residual voltage monitoring technology detects motor stop conditions without additional speed sensors.
- 2 OSSD electronic safety outputs for connection to safety control systems.
- Supports advanced machine safety applications up to SIL 3 / PL e.
- 22.5 mm housing width saves valuable control cabinet space.
- Suitable for single-phase and three-phase motor monitoring applications.
Key Features
- Pizzato CS AM3 series safety module.
- Motor standstill detection function.
- 24 V DC supply voltage.
- 2 OSSD semiconductor safety outputs.
- Residual voltage measurement of motor phases.
- Suitable for single-phase and three-phase motors.
- Configurable inputs and outputs via CS AM Configurator software.
- DIN rail mounting design for electrical control panels.
Reliable Motor Safety Monitoring for Industrial Machinery
The Pizzato CS AM31P1XU improves machine safety by verifying that motors have reached a safe standstill condition before hazardous areas can be accessed. By monitoring the electrical behaviour of motor phases, the module provides dependable stopping detection without requiring external rotation sensors.
Designed for machine builders and automation engineers, the CS AM series combines compact installation, configurable parameters and reliable safety performance for demanding industrial environments.
Typical Applications
- Machine safety circuits requiring motor standstill detection.
- Industrial machinery with hazardous rotating components.
- Access protection for motors and mechanical systems.
- Production lines and automated equipment.
- Pumps, conveyors and processing machinery.
- OEM machine safety applications.
