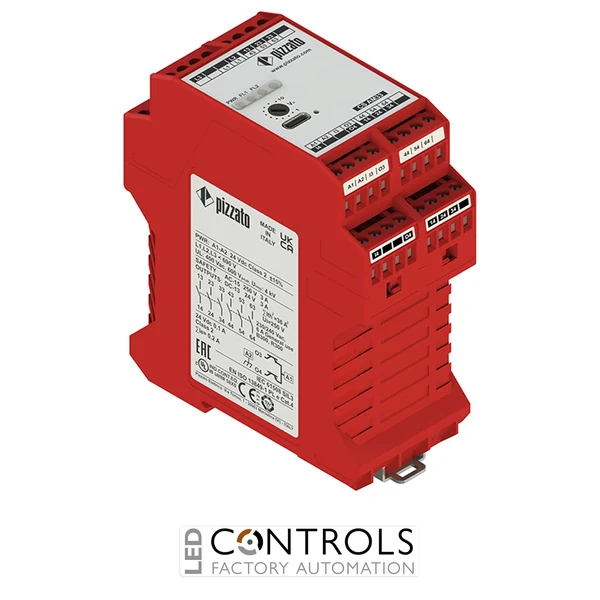

Why Choose the Pizzato CS AM33P1MU Safety Module?
The Pizzato CS AM33P1MU is an advanced programmable safety module with motor standstill, speed and direction-of-rotation monitoring designed to provide comprehensive protection for industrial machinery and automation systems. As part of the Pizzato CS AM3 safety module series, it combines the functions of motor standstill detection and motor speed/direction monitoring within a single configurable safety device.
This module uses sensorless motor monitoring technology by analysing electrical signals from motor phases to determine operating conditions. It can monitor motor standstill, rotational speed and direction of rotation, helping safety systems prevent access to hazardous areas until safe machine conditions are achieved.
The CS AM33P1MU is a programmable P-version module equipped for configuration using the CS AM Configurator software, allowing engineers to adjust safety functions and parameters according to specific machine requirements.
Key Advantages
- Combines motor standstill detection, speed monitoring and direction-of-rotation monitoring in one safety module.
- Programmable configuration enables flexible adaptation to different machinery applications.
- Sensorless monitoring technology reduces the need for additional motor feedback devices.
- Three NO safety relay contacts plus three NO additional safety contacts provide flexible safety circuit integration.
- Suitable for AC and DC motor applications.
- Compact DIN rail mounting format for industrial control cabinets.
Key Features
- Pizzato CS AM3 safety module series.
- Motor standstill monitoring function.
- Motor speed monitoring function.
- Direction-of-rotation detection function.
- Programmable via CS AM Configurator software.
- USB Type-C configuration interface.
- Sensorless motor condition monitoring.
- Designed for industrial machinery safety applications.
Advanced Motor Monitoring for Industrial Safety
The Pizzato CS AM33P1MU provides a complete solution for machinery requiring verified motor status. By monitoring residual voltage and motor electrical behaviour, the module can confirm standstill conditions and evaluate speed and rotation direction for enhanced machine protection.
The programmable CS AM series provides engineers with a flexible safety solution that can be configured for different applications, allowing inputs, outputs and operating parameters to be adapted to machine requirements.
Typical Applications
- Industrial machine safety systems.
- Rotating machinery monitoring.
- Machine guarding and controlled access systems.
- Production equipment with hazardous movement.
- Automation systems requiring motor status verification.
- Maintenance and service safety applications.
