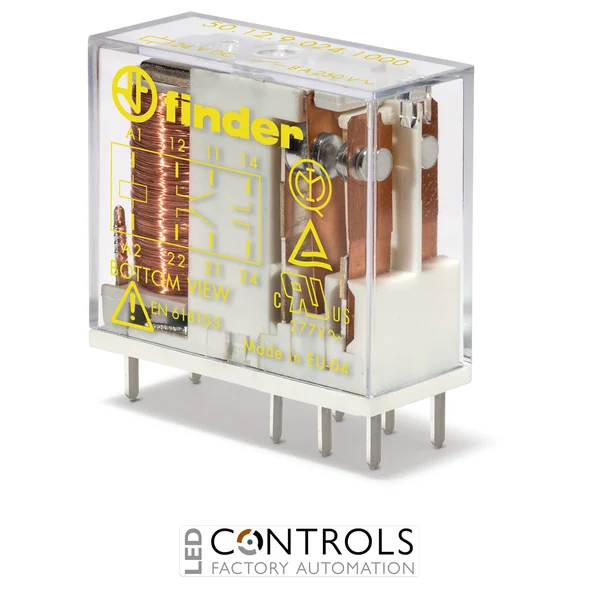

50.12.9.060.5000 Finder Safety relay 2pole 8A DC 60V
Finder 50.12.9.060.5000 is an 8 A PCB-mounted forcibly guided relay featuring a 60 V DC coil, two changeover contacts, gold-plated silver-nickel contact material and EN 61810-3 Type B contact guidance for safety-related industrial control applications.
Why Choose the Finder 50.12.9.060.5000 Forcibly Guided Safety Relay?
The Finder 50.12.9.060.5000 is a compact 8 A forcibly guided contact relay designed for safety-related switching, industrial automation and electrical control applications. Part of the Finder 50 Series, this PCB-mounted electromechanical relay features a 60 V DC coil, two changeover contacts and mechanically linked contact operation in accordance with EN 61810-3 Type B, previously EN 50205.
Unlike conventional switching relays, the Finder 50.12 incorporates forcibly guided contacts that provide a defined mechanical relationship between specified normally open and normally closed contacts. This construction supports contact-state monitoring and fault detection in appropriately designed safety-related control circuits. The silver-nickel contacts with gold plating (AgNi + Au) also support dependable low-level signal switching, making this variant particularly suitable for safety monitoring and control interfaces.
With an 8 A rated contact current, 60 V DC nominal coil, 700 mW coil consumption and 6 kV coil-to-contact impulse insulation, the Finder 50.12.9.060.5000 combines electrical switching capability with compact PCB integration. Its 29 × 12.4 × 25 mm housing, through-hole solder terminals and wide operating temperature range make it a practical choice for safety equipment manufacturers, automation engineers and electronic control system designers.
Key Advantages
Forcibly guided contacts support contact-state monitoring in safety-related control circuits.
EN 61810-3 Type B construction provides mechanically linked contact operation.
60 V DC nominal coil for compatible DC control systems.
Two changeover contacts (2 CO / DPDT) provide flexible switching and monitoring functions.
8 A rated contact current for appropriately specified electrical loads.
Gold-plated silver-nickel contacts support low-level signal switching applications.
6 kV impulse insulation between coil and contacts supports electrical separation.
8 mm coil-to-contact clearance and creepage distance supports reinforced insulation.
700 mW nominal coil consumption supports efficient control circuit design.
PCB through-hole mounting allows direct integration into electronic assemblies.
RT II flux-proof construction supports suitable PCB soldering processes.
Compact dimensions help conserve space in industrial safety controllers and electrical equipment.
Key Features
Finder 50 Series forcibly guided contact relay.
50.12 relay type with two changeover contacts.
2 CO / DPDT contact configuration.
EN 61810-3 Type B forcibly guided contact arrangement.
60 V DC nominal coil voltage.
8 A rated contact current.
250 V AC rated contact voltage.
400 V AC maximum switching voltage.
2,000 VA rated AC1 switching capacity.
5.14 kΩ nominal coil resistance.
700 mW nominal DC coil consumption.
45–72 V DC coil operating voltage range.
Silver-nickel contacts with gold plating (AgNi + Au).
6 kV coil-to-contact impulse withstand voltage.
4,000 V AC coil-to-contact dielectric strength.
PCB through-hole solder terminals with 5 mm pinning.
RT II flux-proof protection.
−40 to +70 °C operating temperature range.
Cadmium-free contact materials.
Reliable Safety Switching for Industrial Automation
The Finder 50.12.9.060.5000 provides mechanically linked contact operation for safety-related electrical control systems. When the 60 V DC coil is energised, the relay contacts change state, allowing connected circuits to perform switching and monitoring functions. Its EN 61810-3 Type B construction establishes a defined mechanical relationship between specified normally open and normally closed contacts, supporting the detection of certain contact faults through appropriately designed monitoring circuits.
The Finder 50 Series is particularly relevant to safety controller manufacturers, automation engineers and OEM equipment designers requiring compact PCB-mounted relays with defined contact guidance. The AgNi + Au contact material supports low-level signal switching, while reinforced insulation provides separation between the coil and contact circuits. For Type B relays, only the manufacturer-specified contact combinations should be treated as forcibly guided pairs. The relay is a component within a safety system rather than a complete safety controller, so the required safety performance must be established and validated at system level.
Typical Applications
Safety-related industrial control circuits.
Emergency-stop monitoring and safety controller assemblies.
Lift and escalator control equipment.
Industrial hoists and crane control systems.
Automated warehouse and carousel systems.
Industrial machinery safety interfaces.
Contact-state monitoring and fault-detection circuits.
Medical and dental equipment control assemblies.
Accessibility lift control equipment.
PCB-based industrial automation and electronic control systems.
OEM safety-related switching and monitoring equipment.
Technical Specifications
Tick the specs you need, then view products that match.
Timing Function
None (instantaneous)
Load Voltage
400 V AC
Mounting Type
PCB
Terminal Type
PCB / pins
Switching Current (A)
8 A
Manufacturer
Finder
Series
50 Series Forcibly Guided Contact Relays
Model
50.12.9.060.5000
Product type
Forcibly guided electromechanical relay
Relay type
50.12
Contact guidance classification
EN 61810-3 Type B
Contact configuration
2 CO / DPDT
Number of poles
2
Nominal coil voltage
60 V DC
Coil supply type
DC
Nominal coil resistance
5.14 kΩ
Nominal coil consumption
700 mW
Coil operating voltage range
45–72 V DC
Rated contact current
8 A
Rated contact voltage
250 V AC
Maximum switching voltage
400 V AC
Rated switching capacity (AC1)
2,000 VA
Contact material
Silver-nickel with gold plating (AgNi + Au)
Coil-to-contact insulation
Reinforced
Coil-to-contact clearance and creepage
8 mm
Coil-to-contact impulse withstand voltage
6 kV (1.2/50 µs)
Coil-to-contact dielectric strength
4,000 V AC
Dielectric strength between open contacts
1,500 V AC
Operate time
Approximately 10 ms
Release time
Approximately 4 ms
Operating ambient temperature
−40 to +70 °C
Protection category
RT II (flux-proof)
Mounting type
PCB through-hole mounting
Terminal type
Solder terminals
Terminal pinning
5 mm
Dimensions (L × W × H)
29 × 12.4 × 25 mm
Contact material composition
Cadmium-free
Frequently Asked Questions
What is the Finder 50.12.9.060.5000 used for?
The Finder 50.12.9.060.5000 is a PCB-mounted relay with forcibly guided contacts, designed for safety-related switching and monitoring in industrial machinery, automation equipment, lift systems and electronic safety controllers.
What coil voltage does the Finder 50.12.9.060.5000 require?
The relay operates with a 60 V DC nominal coil voltage. Its nominal coil resistance is 5.14 kΩ, its coil consumption is 700 mW and its operating voltage range is 45–72 V DC.
What is the contact rating of the Finder 50.12.9.060.5000?
The relay has two changeover contacts rated at 8 A, with a 250 V AC rated contact voltage and a 2,000 VA AC1 switching capacity. The permissible load depends on the switching voltage, load characteristics and applicable utilisation category.
What does EN 61810-3 Type B mean for this Finder relay?
EN 61810-3 Type B identifies a relay with specified mechanically linked normally open and normally closed contacts. For the Finder 50.12, only the manufacturer-designated contact pairs are forcibly guided. This construction supports contact-state monitoring and fault detection in appropriately designed safety-related circuits.
How is the Finder 50.12.9.060.5000 installed?
The relay is designed for PCB through-hole mounting using solder terminals with 5 mm pinning. Its dimensions are 29 × 12.4 × 25 mm, and its RT II flux-proof construction supports appropriate PCB soldering processes.
