Why Choose the ABB SENTRY SSR10 24VDC 2TLA010050R0000 Safety Relay?

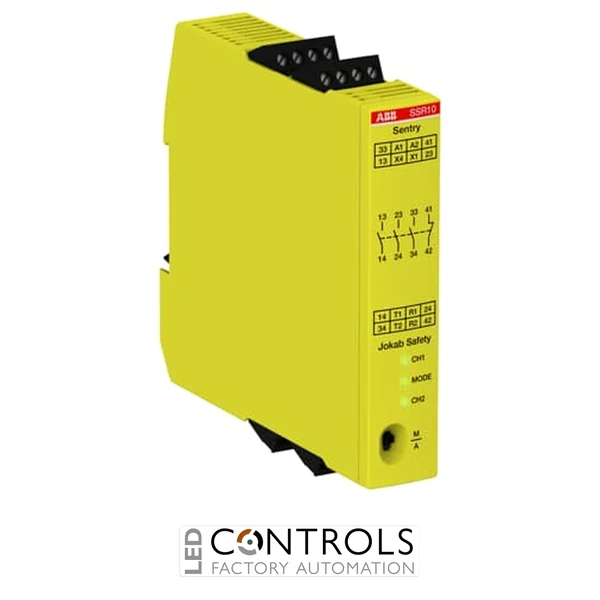

The ABB SENTRY SSR10 24VDC 2TLA010050R0000 is a compact industrial safety relay designed for reliable monitoring of safety devices in machinery and automation systems. Part of the ABB Jokab Safety Sentry range, the SSR10 can monitor safety devices with contacts using one or two equivalent channels, as well as electronic safety devices with OSSD outputs.
The SSR10 provides 3 normally open safety relay outputs and 1 normally closed relay output, giving machine builders a flexible interface between safety devices and contactors or other control equipment. Manual or automatic reset can be selected using the switch on the front of the relay, simplifying configuration for different machine safety requirements.
Operating from a 24 V DC supply, the SSR10 supports applications up to PL e / SIL 3 when correctly incorporated into an appropriate safety system. Its compact 22.5 mm wide enclosure, detachable screw connection blocks and standard DIN-rail mounting make it well suited to modern industrial control panels where dependable safety monitoring and efficient use of cabinet space are required.
Key Advantages
- Versatile safety relay for monitoring industrial safety devices.
- Supports safety devices with 1 or 2 equivalent contact channels.
- Compatible with OSSD safety outputs from devices such as safety light curtains.
- 3 NO + 1 NC relay outputs provide flexible safety switching.
- Manual or automatic reset selectable using a front-mounted switch.
- Suitable for emergency stops, gate switches and safe output expansion.
- Safety performance up to PL e / SIL 3 when correctly integrated into a suitable safety system.
- Compact 22.5 mm wide DIN-rail design reduces control cabinet space requirements.
Key Features
- ABB Jokab Safety Sentry SSR10 safety relay.
- 24 V DC supply voltage.
- 3 NO + 1 NC failsafe relay outputs.
- Monitoring of safety devices with one or two equivalent contact channels.
- Monitoring of safety devices with OSSD outputs.
- Manual or automatic reset selectable from the front of the relay.
- High output current capability up to 6 A.
- No timer function or intentional time delay.
- LED indicators assist with operating status and diagnostics.
- Detachable screw compression connection blocks.
- Suitable for safe output expansion.
- DIN-rail mounting according to IEC 60715.
Flexible Safety Monitoring for Industrial Machinery
Safety relays such as the ABB SENTRY SSR10 provide the monitored interface between machine safety devices and the equipment responsible for removing hazardous movement or energy. The SSR10 can monitor conventional contact-based safety devices through one or two equivalent channels and can also accept OSSD signals from compatible electronic safety equipment such as light curtains.
The SSR10 combines straightforward configuration with flexible reset functionality. A front-mounted selector allows manual or automatic reset to be chosen for the application, while the 3 NO safety outputs provide multiple switching paths for machine contactors or other safety-related devices. Its high output current capability can also reduce the need for intermediary contactors in suitable applications.
Typical Applications
- Emergency-stop monitoring.
- Interlocked machine guards, gates and hatches.
- Safety switches with one or two equivalent contact channels.
- Safety light curtains with OSSD outputs.
- Safety light beams and other compatible OSSD devices.
- Safe output expansion.
- Industrial machinery and automated production equipment.
- Machine control panels requiring compact safety monitoring.
