Why Choose the ABB SENTRY TSR10 24VDC 2TLA010060R0000 Safety Relay/Timer?

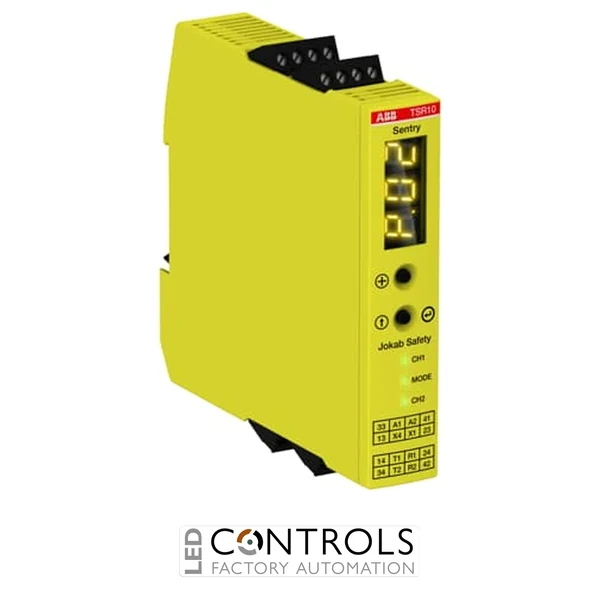

The ABB SENTRY TSR10 24VDC 2TLA010060R0000 is a configurable safety relay and multifunction safety timer designed for industrial machinery and automation systems requiring precise time-controlled safety outputs. Part of the ABB Jokab Safety Sentry range, the TSR10 combines safety monitoring with advanced timing functions in a compact DIN-rail module.
The TSR10 provides 3 normally open delayed failsafe relay outputs and 1 normally closed relay output. Its configurable timer covers 0–999 s with accuracy better than 1%, supporting OFF-delay, ON-delay, time bypass and time reset functions. This flexibility makes the TSR10 suitable for controlled stopping sequences, delayed machine shutdown, timed safety bypass functions and other applications where precise safety-related timing is required.
Operating from a 24 V DC supply, the TSR10 can monitor safety devices with one or two equivalent contact channels as well as compatible electronic safety devices with OSSD outputs. A front display simplifies configuration and troubleshooting by showing operating information, error codes and an error log, while password protection can be used to safeguard customised settings against unauthorised changes.
Key Advantages
- Combines a safety relay and multifunction safety timer in one compact device.
- Wide configurable timing range of 0–999 s.
- Timer accuracy of better than 1%.
- Supports OFF-delay, ON-delay, time bypass and time reset functions.
- 3 NO delayed failsafe relay outputs plus 1 NC relay output.
- Compatible with contact-based safety devices and OSSD safety outputs.
- Front display simplifies configuration, diagnostics and troubleshooting.
- Password protection helps prevent unauthorised modification of custom configurations.
Key Features
- ABB Jokab Safety Sentry TSR10 multifunction safety relay/timer.
- 24 V DC power supply.
- 3 NO + 1 NC delayed failsafe relay outputs.
- 0–999 s configurable timer range.
- Timing accuracy better than 1%.
- OFF-delay timer function.
- ON-delay timer function.
- Time bypass function.
- Time reset function.
- Supports safety devices with 1 or 2 equivalent contact channels.
- Supports safety devices with OSSD outputs.
- Automatic reset operation.
- Front display provides configuration, error codes and error log information.
- Custom configurations can be password protected.
- Detachable screw connection blocks simplify installation and servicing.
Configurable Safety Timing for Industrial Automation
Safety timers such as the ABB SENTRY TSR10 allow machine designers to introduce precisely controlled timing into safety-related switching functions. With configurable OFF-delay, ON-delay, time bypass and time reset modes, the TSR10 can be adapted to applications ranging from controlled machine stopping to temporary safety bypass functions, with a programmable timing range extending from 0–999 s.
The TSR10 also combines its timing capabilities with flexible safety input monitoring. Contact-based devices with one or two equivalent channels and compatible OSSD devices can be connected, while the front display provides direct access to configuration and diagnostic information. This combination reduces the need for separate timing and safety modules while providing a convenient way to configure and troubleshoot sophisticated timed safety functions.
Typical Applications
- Timed safety output control.
- Controlled stopping sequences for industrial machinery.
- Delayed machine shutdown functions.
- Safety output expansion requiring configurable timing.
- ON-delay and OFF-delay safety functions.
- Time-controlled safety bypass applications.
- Safety devices with one or two equivalent contact channels.
- Safety light curtains and other compatible devices with OSSD outputs.
