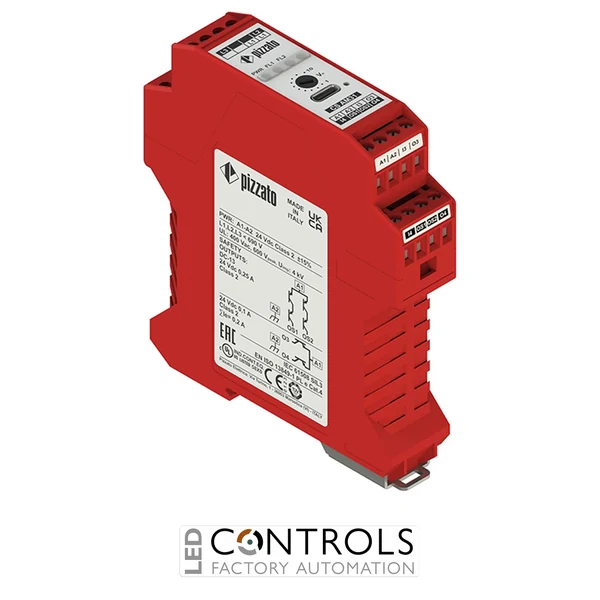

Why Choose the Pizzato CS AM31P1MU Safety Module?
The Pizzato CS AM31P1MU is an advanced safety module with motor standstill detection designed to monitor the safe stopping condition of electric motors in industrial machinery and automation systems. As part of the Pizzato CS AM safety module series, it provides reliable motor monitoring for applications where machine access or safety operations require confirmation that hazardous movement has stopped.
The CS AM31P1MU detects motor standstill by measuring the residual voltage generated by a rotating motor, such as movement caused by inertia after power removal. This allows the safety system to verify a safe stopped condition without requiring additional speed sensors for standard motor standstill monitoring applications.
With a 24 V DC supply voltage, 2 OSSD safety outputs and a compact 22.5 mm housing, the CS AM31P1MU is designed for DIN rail installation inside industrial control cabinets. Its programmable configuration capability allows flexible adaptation to modern machine safety systems.
Key Advantages
- Compact motor standstill detection safety module for industrial machinery.
- Residual voltage monitoring technology confirms motor stopping conditions.
- 24 V DC supply operation for industrial safety control systems.
- 2 OSSD electronic safety outputs for modern safety circuit integration.
- Programmable functions simplify configuration for different machine applications.
- Space-saving DIN rail mounting with a compact 22.5 mm housing.
Key Features
- Pizzato CS AM safety module series.
- Motor standstill detection function.
- 24 V DC rated supply voltage.
- 2 OSSD safety outputs.
- Programmable configuration via CS AM Configurator software.
- 22.5 mm housing width for compact control cabinet installation.
- Monitoring of residual voltage generated by rotating motors.
- Suitable for single-phase and three-phase motor applications.
Reliable Motor Standstill Monitoring for Industrial Safety
Motor standstill detection is essential in machinery where rotating components must stop completely before guards are opened or maintenance operations begin. The Pizzato CS AM series monitors motor electrical characteristics and controls safety outputs according to the detected movement condition, helping improve operator protection in industrial environments.
The CS AM31P1MU is designed for machine builders and automation engineers requiring flexible safety monitoring, compact installation and reliable integration into industrial control systems. Its programmable architecture and electronic safety outputs provide a practical solution for modern machinery safety applications.
Typical Applications
- Industrial machinery with rotating electric motors.
- Machine guarding and access protection systems.
- Machine tools and production equipment.
- Automation systems requiring safe motor stopping verification.
- Processing and manufacturing machinery.
- OEM safety control panels and industrial installations.
