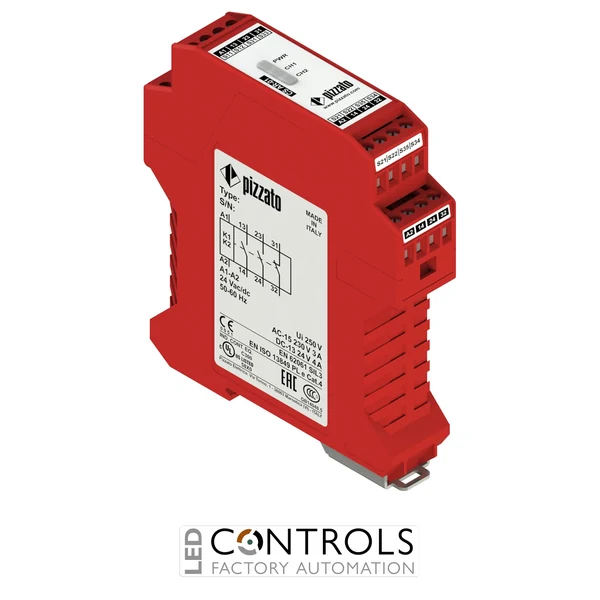

Why Choose the Pizzato CS AR-01M230 Safety Module?
The Pizzato CS AR-01M230 is a high-performance safety relay module designed for monitoring emergency stop devices and movable safety guards in industrial machinery and automation systems. As part of the Pizzato CS AR series, it provides dependable safety control for applications requiring up to Category 4, Performance Level e and SIL 3.
The module features 2NO safety outputs and 1NC signalling output, enabling safety-related switching alongside auxiliary status indication. Its safety architecture is designed to supervise connected safety devices and help ensure machinery is brought to a safe state when a guard is opened or an emergency stop is activated.
With a 230 V AC supply and plug-in connectors with screw terminals, the CS AR-01M230 provides convenient installation and maintenance within industrial control cabinets. Its combination of high safety performance, removable terminal connections and versatile monitoring capability makes it suitable for a wide range of machine safety systems.
Key Advantages
- Designed for emergency stop and movable guard monitoring.
- Suitable for safety applications up to Category 4.
- Supports Performance Level e (PL e) safety systems.
- Suitable for applications up to SIL 3.
- Provides 2NO safety contacts plus 1NC signalling contact.
- 230 V AC supply for industrial control systems.
- Plug-in connectors simplify installation, servicing and replacement.
Key Features
- Pizzato CS AR-01 safety module.
- 2NO + 1NC output configuration.
- Category 4 safety capability.
- PL e performance level capability.
- SIL 3 safety integrity level capability.
- Emergency stop monitoring functionality.
- Monitoring of end positions and movable safety guards.
- 230 V AC operating supply.
- Four plug-in connectors with screw terminals.
Reliable Safety Monitoring for Industrial Machinery
Safety modules such as the Pizzato CS AR-01M230 supervise emergency stop circuits and safety guard devices to ensure hazardous machine functions are interrupted when a safety condition is triggered. The module's redundant safety architecture supports high-integrity machine safety systems where reliable switching is essential.
The CS AR series is designed for integration into industrial control panels and machine safety circuits. Its combination of safety outputs, signalling contact and removable plug-in connections provides machine builders and automation engineers with a practical solution for protecting personnel around hazardous machinery.
Typical Applications
- Emergency stop circuit monitoring.
- Movable machine guard monitoring.
- Safety door and gate supervision.
- Industrial production machinery.
- Packaging and processing equipment.
- Automated manufacturing systems.
- Machine building and OEM safety control panels.
