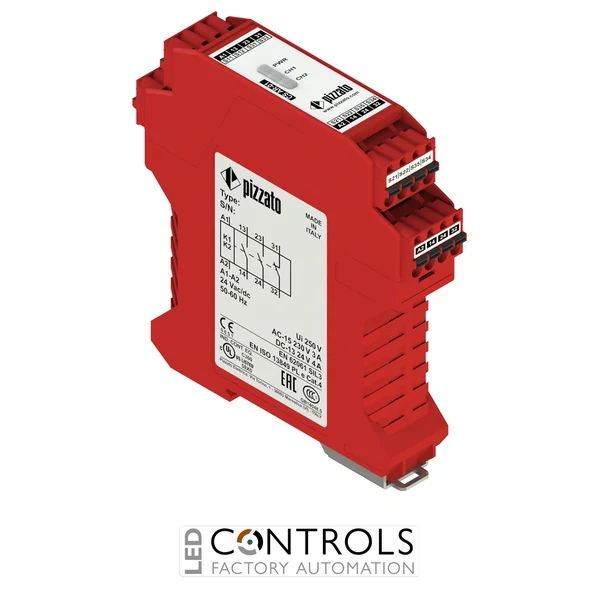

Why Choose the Pizzato CS AR-01X120 Safety Module?
The Pizzato CS AR-01X120 is a compact and dependable Category 4 safety module designed for monitoring safety devices in industrial machinery and automation systems. Part of the Pizzato CS AR series, it provides safety relay functionality for applications such as emergency-stop circuits, safety switches and guard-monitoring systems.
The CS AR-01X120 provides two normally open (2 NO) safety contacts plus one normally closed (1 NC) auxiliary contact. This contact configuration enables redundant safety switching while providing an auxiliary signalling contact for machine control or status-monitoring functions.
Designed for a 120 V AC supply, the CS AR-01X120 is suitable for industrial control panels requiring a mains-powered safety relay solution. Its safety architecture supports applications up to Category 4, making it a practical choice for machinery where reliable monitoring and interruption of hazardous operation are essential.
Key Advantages
- Designed for demanding Category 4 machine safety applications.
- 2 NO safety contacts provide redundant safety-related switching.
- 1 NC auxiliary contact supports signalling and status monitoring.
- 120 V AC supply suits mains-powered industrial control systems.
- Suitable for monitoring emergency stops, safety switches and machine guards.
- Compact modular construction simplifies installation in electrical control panels.
Key Features
- Pizzato CS AR series safety module.
- Category 4 safety capability.
- 2 NO + 1 NC contact configuration.
- Two normally open safety output contacts.
- One normally closed auxiliary signalling contact.
- 120 V AC rated supply voltage.
- Suitable for safety-device monitoring applications.
- Designed for integration into industrial machine safety circuits.
- DIN-rail format for control-panel installation.
Reliable Safety Monitoring for Industrial Machinery
Safety modules such as the Pizzato CS AR-01X120 form an important part of machinery safety circuits by monitoring connected protective devices and controlling safety-related outputs. The redundant normally open contacts can be incorporated into machine stop circuits so hazardous operation is interrupted when the monitored safety condition is no longer satisfied.
The additional normally closed auxiliary contact can provide status information to a PLC, indicator or other control equipment without replacing the dedicated safety outputs. This makes the CS AR-01X120 suitable for machine builders requiring both dependable safety switching and convenient operational feedback from a compact safety relay.
Typical Applications
- Emergency-stop circuit monitoring.
- Safety guard and interlock monitoring.
- Industrial machine safety systems.
- Automated production and assembly machinery.
- Packaging and processing equipment.
- Conveyors and material handling systems.
- OEM machine-building control panels.
