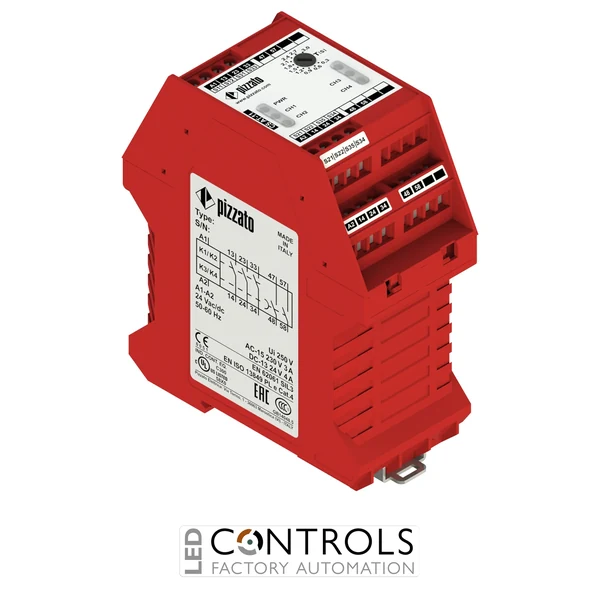

Why Choose the Pizzato CSAT-13V024 Safety Module?
The Pizzato CSAT-13V024 is a high-performance safety relay module designed for industrial machine safety applications such as emergency stop systems, safety guard monitoring, and controlled access protection. As part of the reliable Pizzato CSAT safety module series, it ensures compliant operation in automation systems requiring up to Category 4 safety performance.
This module provides a combination of instantaneous safety outputs and delayed safety contacts, enabling controlled shutdown sequences for machines with safety timing requirements. The delay function helps reduce mechanical stress while maintaining high operator protection in automated environments.
With a 24 VAC/DC supply voltage and SIL 3 / PL e safety capability, the CSAT-13V024 is widely used in robotics, packaging lines, conveyors, and industrial machinery where timed safety outputs are required for safe stopping processes.
Key Advantages
- Advanced emergency stop and safety guard monitoring functionality.
- Supports high safety standards including Category 4, PL e, SIL 3.
- 3NO instantaneous + 2NO delayed safety outputs.
- Adjustable delay function for controlled shutdown (3–30 s typical range).
- Compact DIN-rail design for easy panel installation.
Key Features
- Pizzato CSAT safety relay module series.
- Model: CSAT-13V024.
- 3NO instantaneous safety contacts.
- 2NO delayed safety contacts (de-energisation delay).
- 24 VAC/DC supply voltage.
- Adjustable time delay (step-controlled timing).
- Screw terminal connections for secure wiring.
- Designed for emergency stop and safety circuit integration.
The CSAT-13V024 ensures safe and controlled machine shutdown by combining instantaneous and delayed safety outputs. This allows machinery to complete a structured stopping cycle before full deactivation, improving both safety performance and equipment longevity.
It is commonly used in industrial automation systems where timed safety logic is required, particularly in complex production lines, robotics cells, and conveyor systems.
Typical Applications
- Industrial emergency stop systems.
- Safety gate and guard monitoring systems.
- Automated production and assembly lines.
- Robotics safety circuits.
- Packaging and processing machinery.
- Material handling and conveyor systems.
