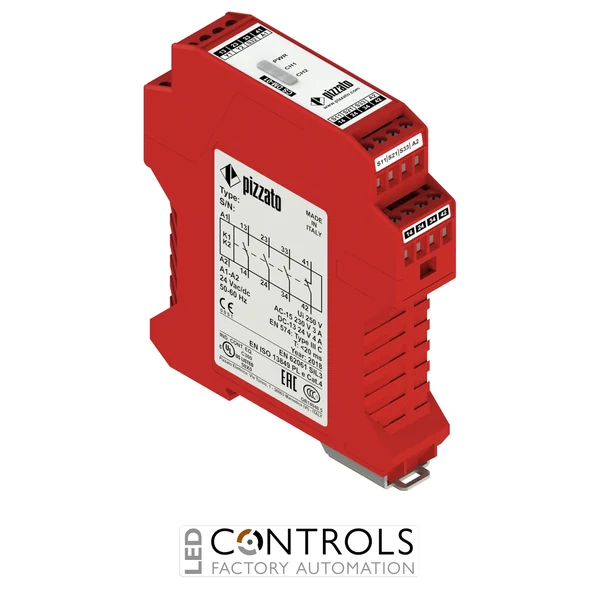

Why Choose the Pizzato CSDM-01M120 Safety Module?
The Pizzato CSDM-01M120 is a high-reliability bimanual (two-hand control) safety module designed for industrial machinery requiring safe dual-hand operation. It ensures that hazardous machine functions can only be activated when both control devices are operated simultaneously within a defined safety logic window, in compliance with EN ISO 13851 Type III C.
This safety module is widely used in press machines, stamping systems, and automated production equipment where operator protection is critical. It prevents accidental machine start-up and enforces safe two-hand control logic to reduce risk in high-danger working environments.
With a 120 VAC supply voltage and a safety output configuration of 3NO + 1NC, the CSDM-01M120 provides dependable switching performance and seamless integration into industrial control panels.
Key Advantages
- Certified bimanual safety control monitoring for industrial machinery.
- Compliant with EN ISO 13851 Type III C safety standard.
- 3NO + 1NC safety outputs for control and feedback circuits.
- Reliable dual-hand operation logic for operator protection.
- Compact DIN-rail housing for easy panel installation.
Key Features
- Pizzato CSDM safety module series.
- Model: CSDM-01M120.
- Bimanual (two-hand) control monitoring functionality.
- 3NO + 1NC output contacts.
- 120 VAC supply voltage.
- Plug-in removable terminal connectors with screw terminals.
- Designed for press safety and hazardous machine control systems.
Bimanual Safety Control Function
The CSDM-01M120 ensures that machine operation is only enabled when both operator hands activate the control devices simultaneously within a defined safety window. This prevents unintended activation and enforces safe working practices in hazardous machinery environments.
It is particularly suited for mechanical presses and automated systems where operator proximity to dangerous moving parts requires strict two-hand safety validation.
Typical Applications
- Industrial press machines.
- Stamping and forming equipment.
- Two-hand control safety systems.
- Automated manufacturing machinery.
- High-risk production lines.
- Machine tools requiring operator safety interlocks.
