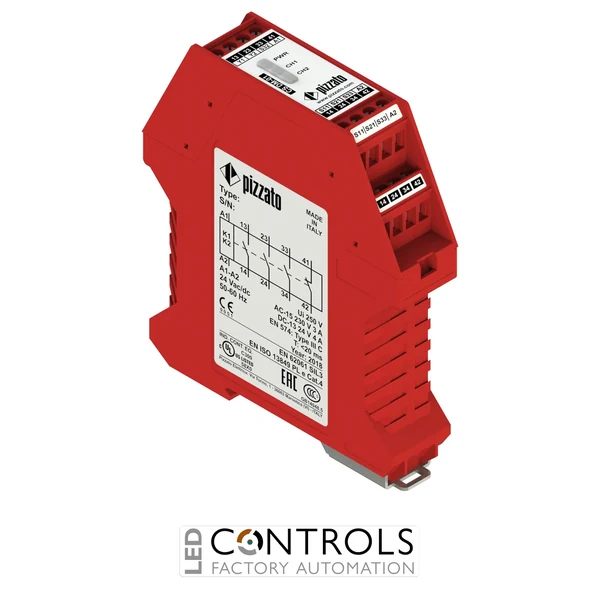

Why Choose the Pizzato CSDM-01V024 Safety Module?
The Pizzato CSDM-01V024 is a high-reliability bimanual (two-hand control) safety module designed for industrial machinery requiring strict operator protection and controlled machine activation. It ensures that hazardous machine functions can only be enabled when both control devices are activated simultaneously within a defined safety logic window, in compliance with EN ISO 13851 Type III C.
This module is widely used in press machines, stamping systems, and automated production equipment where enforced two-hand control is essential. It prevents unintended machine start-up and improves operator safety in high-risk industrial environments.
With a 24 VAC/DC supply voltage and a safety output configuration of 3NO + 1NC, the CSDM-01V024 provides robust switching performance and seamless integration into modern industrial safety control systems.
Key Advantages
- Certified bimanual safety control monitoring for industrial machinery.
- Compliant with EN ISO 13851 Type III C safety standard.
- 3NO + 1NC safety outputs for control and feedback circuits.
- High-integrity dual-hand operation logic for operator protection.
- Compact DIN-rail design for easy installation in control panels.
Key Features
- Pizzato CSDM safety module series.
- Model: CSDM-01V024.
- Bimanual (two-hand control) monitoring functionality.
- 3NO + 1NC output contacts.
- 24 VAC/DC supply voltage.
- Plug-in removable terminal connectors with screw terminals.
- Designed for press safety and hazardous machine control systems.
Bimanual Safety Control Function
The CSDM-01V024 ensures that machine operation is only enabled when both operator hands activate the control devices simultaneously within a defined safety window. This prevents accidental activation and enforces strict two-hand safety logic in hazardous machinery environments.
It is commonly used in mechanical presses and automated systems where operator proximity to dangerous moving parts requires enforced safety interlocking.
Typical Applications
- Industrial press machines.
- Stamping and forming equipment.
- Two-hand control safety systems.
- Automated manufacturing machinery.
- High-risk production lines.
- Machine tools requiring operator safety interlocks.
