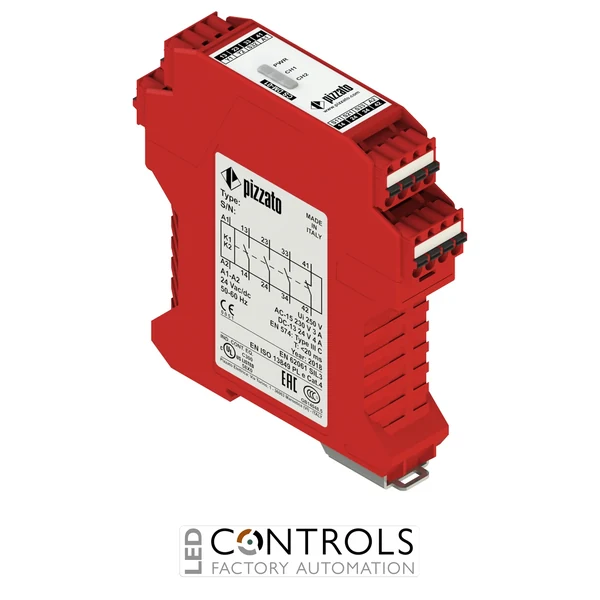

Why Choose the Pizzato CSDM-01X120 Safety Module?
The Pizzato CSDM-01X120 is a high-reliability bimanual (two-hand control) safety module designed for industrial machinery requiring strict operator protection. It ensures that hazardous machine operations can only be enabled when both control devices are activated simultaneously within a defined safety time window, in compliance with EN ISO 13851 Type III C.
This safety module is widely used in press machines, stamping equipment, and automated production systems where enforced two-hand control is essential. It helps prevent accidental activation and ensures safe machine operation in high-risk industrial environments.
With a 120 VAC supply voltage and a safety output configuration of 3NO + 1NC, the CSDM-01X120 delivers dependable switching performance and seamless integration into industrial control panels and safety circuits.
Key Advantages
- Certified bimanual safety control monitoring for industrial machinery.
- Compliant with EN ISO 13851 Type III C safety standard.
- 3NO + 1NC safety outputs for control and feedback circuits.
- High-reliability dual-hand operation logic for operator protection.
- Compact DIN-rail design for easy installation in control panels.
Key Features
- Pizzato CSDM safety module series.
- Model: CSDM-01X120.
- Bimanual (two-hand control) monitoring functionality.
- 3NO + 1NC output contacts.
- 120 VAC supply voltage.
- Plug-in removable terminal connectors with screw terminals.
- Designed for press safety and hazardous machine control systems.
Bimanual Safety Control Function
The CSDM-01X120 ensures that machine operation is only enabled when both operator hands activate the control devices simultaneously within a defined safety window. This prevents unintended activation and enforces strict two-hand safety logic in hazardous machinery environments.
It is commonly used in mechanical presses and automated systems where operator proximity to dangerous moving parts requires enforced safety interlocking.
Typical Applications
- Industrial press machines.
- Stamping and forming equipment.
- Two-hand control safety systems.
- Automated manufacturing machinery.
- High-risk production lines.
- Machine tools requiring operator safety interlocks.
