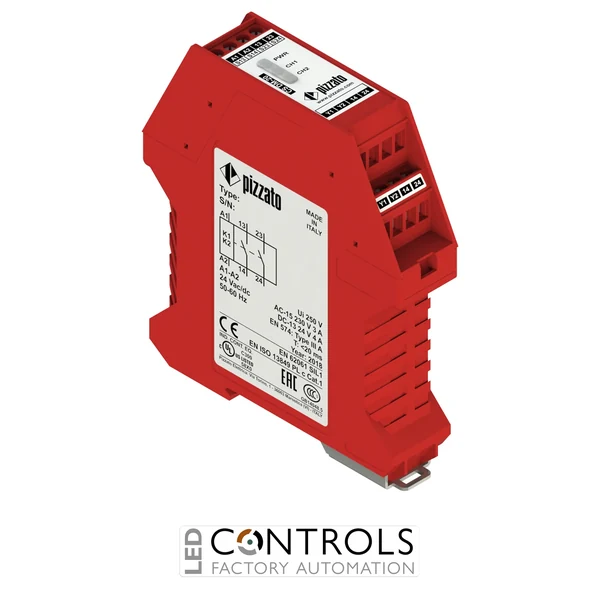

Why Choose the Pizzato CSDM-20V120 Safety Module?
The Pizzato CSDM-20V120 is a robust bimanual (two-hand control) safety module designed for industrial machinery requiring reliable operator protection and controlled machine enabling logic. It ensures that hazardous machine movements can only be activated when both control devices are operated simultaneously within a defined safety timing window, in compliance with EN ISO 13851 Type III A.
This safety module is widely used in press machines, automated production systems, and industrial equipment where enforced two-hand control is required to prevent accidental activation and improve operator safety in high-risk environments.
With a 120 VAC supply voltage and a 2NO safety output configuration, the CSDM-20V120 provides reliable switching performance and straightforward integration into industrial safety control circuits.
Key Advantages
- Reliable bimanual safety control monitoring for industrial machinery.
- Compliant with EN ISO 13851 Type III A safety standard.
- 2NO safety outputs for machine interlocking applications.
- High-integrity dual-hand logic improves operator safety.
- Compact DIN-rail design for easy control panel installation.
Key Features
- Pizzato CSDM safety module series.
- Model: CSDM-20V120.
- Bimanual (two-hand control) safety monitoring functionality.
- 2NO safety output contacts.
- 120 VAC supply voltage.
- Screw terminal connection system.
- Designed for industrial press and automation safety systems.
Bimanual Safety Control Function
The CSDM-20V120 ensures that machine operation is only enabled when both operator hands activate the control devices simultaneously within a defined safety window. This prevents unintended activation and enforces strict two-hand safety logic in hazardous machinery environments.
It is commonly used in mechanical presses and industrial automation systems where operator safety depends on enforced dual-hand operation logic.
Typical Applications
- Industrial press machines.
- Stamping and forming systems.
- Two-hand control safety stations.
- Automated production machinery.
- Machine tools requiring operator safety interlocks.
- General industrial automation safety circuits.
