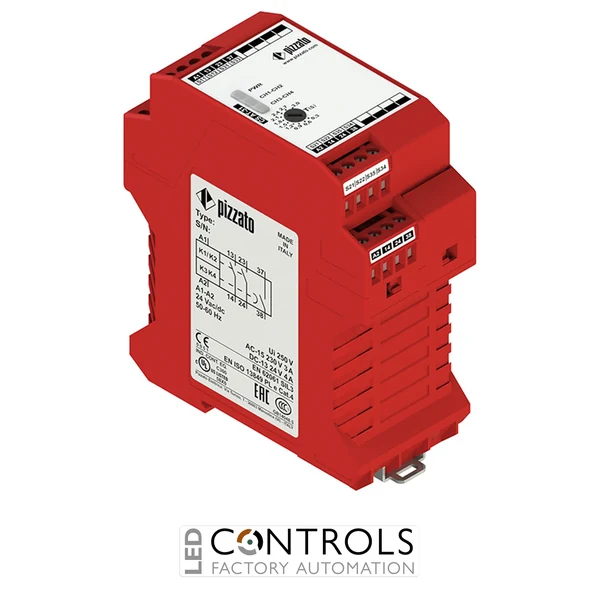

Pizzato CSFS-11M024 safety timing relay module with delayed-at-energizing function for industrial machine safety applications.
£128.61
The Pizzato CSFS-11M024 is a compact and reliable industrial safety timer module designed for machine safety applications requiring controlled time-delayed switching. Part of the Pizzato CS FS-1 safety module series, this device provides dependable timing functions for safety circuits in industrial automation systems.
The CSFS-11M024 provides 1 normally open safety contact and 2 normally closed auxiliary contacts with delayed operation at energising. It is designed for safety applications up to Category 4, Performance Level PL e and SIL 3, helping machine builders implement reliable safety timing functions.
With a 24 VAC/DC supply voltage, connector terminals with screw connections and a compact 45 mm housing, the Pizzato CSFS-11M024 is suitable for installation inside industrial control cabinets where accurate safety timing and dependable switching performance are required.
Safety timer modules such as the Pizzato CSFS-11M024 provide controlled timing functions within machine safety circuits. By introducing a defined delay period, the module allows engineers to manage safety-related switching sequences while maintaining required protection levels.
The CS FS series is designed for OEM machine builders and industrial automation engineers requiring dependable safety timing, compact installation and straightforward integration into modern control systems. Its delayed outputs support applications where controlled activation timing is essential.
| Voltage | 24 V |
|---|---|
| IP Rating | IP20 |
| Series | CSFS Safety Timing Modules |
| Product type | Safety timing relay module |
| Function | Delayed at energizing |
| Supply voltage | 24 V AC/DC |
| Output contacts | 1 NO safety + 2 NC auxiliary |
| Safety level | Up to SIL CL 3 / PL e (application dependent) |
| Mounting type | DIN rail / panel mounting |
| Housing | Industrial modular enclosure |
| Operating temperature | -25 to +55°C (typical series range) |
| Protection rating | IP20 (typical CS series) |
| HS Code | 85369095 |
The Pizzato CSFS-11M024 is used for safety timing functions in industrial machinery and automation systems requiring delayed safety switching.
The module provides 1 normally open safety contact and 2 normally closed delayed contacts.
The CSFS-11M024 operates from a 24 VAC/DC supply voltage.
The safety timer provides an adjustable delayed energising time range of 0.3 to 3 seconds.
The module supports safety applications up to Category 4, PL e and SIL 3 depending on system architecture.
Pizzato CS FS safety timer modules are widely used in industrial machinery and automation systems to provide reliable time-delayed safety switching and dependable machine protection.{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato CSFS-11M024 Safety Timer Module", "sku": "CSFS-11M024", "mpn": "CSFS-11M024", "brand": { "@type": "Brand", "name": "Pizzato" }, "category": "Safety Timer Modules", "description": "Pizzato CSFS-11M024 safety timer module with 1NO and 2NC delayed outputs for industrial machine safety applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "24 VAC/DC" }, { "@type": "PropertyValue", "name": "Safety outputs", "value": "1NO + 2NC delayed" }, { "@type": "PropertyValue", "name": "Timing range", "value": "0.3-3 seconds" }, { "@type": "PropertyValue", "name": "Performance level", "value": "PL e" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Pizzato CSFS-11M024 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Pizzato CSFS-11M024 is used for safety timing functions in industrial machinery and automation systems requiring delayed safety switching." } }, { "@type": "Question", "name": "What outputs does the CSFS-11M024 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The module provides 1 normally open safety contact and 2 normally closed delayed contacts." } }, { "@type": "Question", "name": "What supply voltage does this safety timer require?", "acceptedAnswer": { "@type": "Answer", "text": "The CSFS-11M024 operates from a 24 VAC/DC supply voltage." } }, { "@type": "Question", "name": "What is the timing range of this module?", "acceptedAnswer": { "@type": "Answer", "text": "The safety timer provides an adjustable delayed energising time range of 0.3 to 3 seconds." } }, { "@type": "Question", "name": "What safety performance does this module support?", "acceptedAnswer": { "@type": "Answer", "text": "The module supports safety applications up to Category 4, PL e and SIL 3 depending on system architecture." } } ] }
