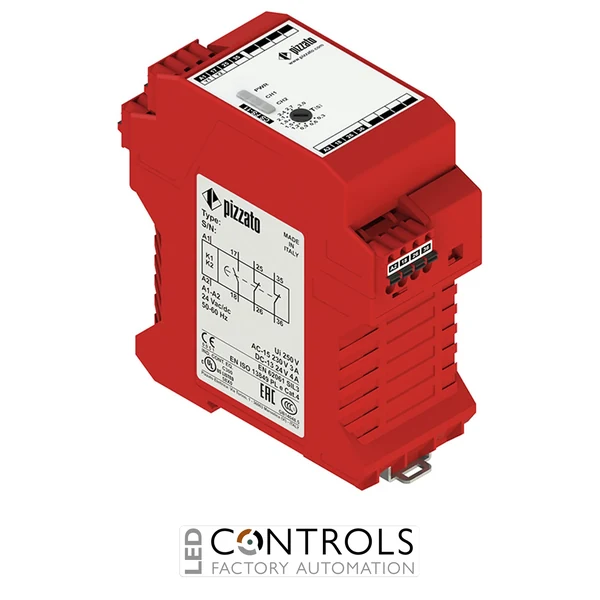

Pizzato CSFS-12X024 safety timing relay module with delayed-at-energizing function for industrial machine safety applications, 24 V AC/DC supply.
£128.61
The Pizzato CSFS-12X024 is a compact and dependable industrial safety timer module designed for machine safety applications requiring controlled time-delayed switching. Part of the Pizzato CS FS-1 safety module series, this device provides reliable timing functions for safety circuits used in industrial automation and machinery protection systems.
The CSFS-12X024 provides 1 normally open safety contact and 2 normally closed auxiliary contacts with delayed operation at energising. It is designed for safety timing applications with forcibly guided relay contacts, helping machine builders implement dependable safety switching sequences.
With a 24 VAC/DC supply voltage, compact 22.5 mm housing and DIN rail mounting capability, the Pizzato CSFS-12X024 is suitable for installation inside industrial control cabinets where accurate safety timing and efficient panel space usage are required.
Safety timer modules such as the Pizzato CSFS-12X024 provide controlled timing functions within machine safety circuits. By introducing a defined delay period, the module allows engineers to manage safety-related switching operations while maintaining dependable protection for operators and equipment.
The CS FS series is designed for OEM machine builders and industrial automation engineers requiring reliable safety timing, compact installation and straightforward integration into modern control systems. Its delayed outputs support applications where controlled machine sequences are required.
| Voltage | 24 V |
|---|---|
| IP Rating | IP20 |
| Series | CSFS Safety Timing Modules |
| Product type | Safety timing relay module |
| Function | Delayed at energizing |
| Supply voltage | 24 V AC/DC |
| Output contacts | 1 NO safety + 2 NC auxiliary |
| Timing range | Adjustable (typically 1–10 s depending on configuration) |
| Mounting type | DIN rail / panel mounting |
| Housing | Industrial modular enclosure |
| Operating temperature | -25 to +55°C (typical CS series) |
| Protection rating | IP20 (typical CS series) |
| HS Code | 85369095 |
The Pizzato CSFS-12X024 is used for safety timing functions in industrial machinery and automation systems requiring delayed safety switching.
The module provides 1 normally open safety contact and 2 normally closed auxiliary contacts.
The CSFS-12X024 operates from a 24 VAC/DC supply voltage.
The safety timer provides a delayed operation at energising function with adjustable time settings.
The module is designed for DIN rail mounting inside industrial control cabinets using spring terminal connections.
Pizzato CS FS safety timer modules are widely used in industrial machinery and automation systems to provide reliable time-delayed safety switching and dependable machine protection.{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato CSFS-12X024 Safety Timer Module", "sku": "CSFS-12X024", "mpn": "CSFS-12X024", "brand": { "@type": "Brand", "name": "Pizzato" }, "category": "Safety Timer Modules", "description": "Pizzato CSFS-12X024 safety timer module with 1NO safety contact and 2NC auxiliary contacts for industrial machine safety applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "24 VAC/DC" }, { "@type": "PropertyValue", "name": "Output contacts", "value": "1NO + 2NC" }, { "@type": "PropertyValue", "name": "Function", "value": "Delayed energising safety timer" }, { "@type": "PropertyValue", "name": "Housing width", "value": "22.5 mm" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Pizzato CSFS-12X024 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Pizzato CSFS-12X024 is used for safety timing functions in industrial machinery and automation systems requiring delayed safety switching." } }, { "@type": "Question", "name": "What outputs does the CSFS-12X024 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The module provides 1 normally open safety contact and 2 normally closed auxiliary contacts." } }, { "@type": "Question", "name": "What supply voltage does this safety timer require?", "acceptedAnswer": { "@type": "Answer", "text": "The CSFS-12X024 operates from a 24 VAC/DC supply voltage." } }, { "@type": "Question", "name": "What timing function does this module provide?", "acceptedAnswer": { "@type": "Answer", "text": "The safety timer provides a delayed operation at energising function with adjustable time settings." } }, { "@type": "Question", "name": "How is the Pizzato CSFS-12X024 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The module is designed for DIN rail mounting inside industrial control cabinets using spring terminal connections." } } ] }
