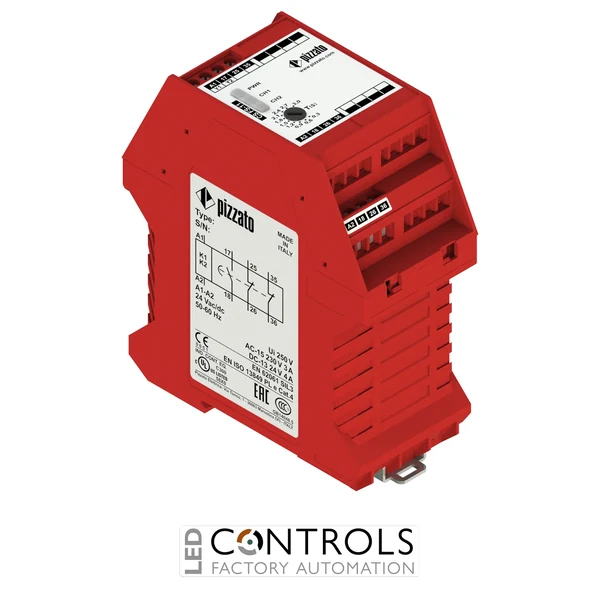

Why Choose the Pizzato CSFS-13V024 Safety Timer Module?
The Pizzato CSFS-13V024 is a high-performance safety timer module designed for industrial machinery requiring controlled, delayed energization of safety outputs. It ensures that machine functions are only enabled after predefined safety conditions are satisfied, improving operator protection and system reliability in automated environments.
This module is widely used in safety interlocking circuits, guard monitoring systems, and machine control applications where a delay-on energization function is required to safely sequence machine startup operations in compliance with Category 4, PL e, SIL 3 safety architectures.
With a 24 VAC/DC supply voltage and a 1NO + 2NC delayed output configuration, the CSFS-13V024 delivers precise timing control and dependable switching performance for demanding industrial applications.
Key Advantages
- Reliable delay-on energization safety timing for industrial automation.
- Compliant with Category 4, PL e, SIL 3 safety standards.
- 1NO + 2NC safety outputs for flexible machine integration.
- Precise timing control for safe machine startup sequencing.
- Compact DIN-rail housing for control cabinet installation.
Key Features
- Pizzato CS FS safety timer series.
- Model: CSFS-13V024.
- Safety timer with delay-on energization function.
- 24 VAC/DC supply voltage.
- 1NO + 2NC safety output contacts.
- Screw terminal connection system.
- Designed for machine guarding and safety interlock systems.
Safety Timer Function
The CSFS-13V024 ensures that safety outputs are activated only after a controlled energizing delay once input safety conditions are met. This prevents premature machine start and ensures that safety devices such as guards, interlocks, and emergency stop circuits are fully validated before operation begins.
It is commonly used in automated production systems, safety gates, and industrial machinery requiring timed sequencing of safety outputs for safe startup procedures.
Typical Applications
- Industrial machine safety interlocks.
- Guard door monitoring systems.
- Press and automation equipment.
- Emergency stop delay circuits.
- Robotics safety systems.
- High-risk industrial machinery control systems.
