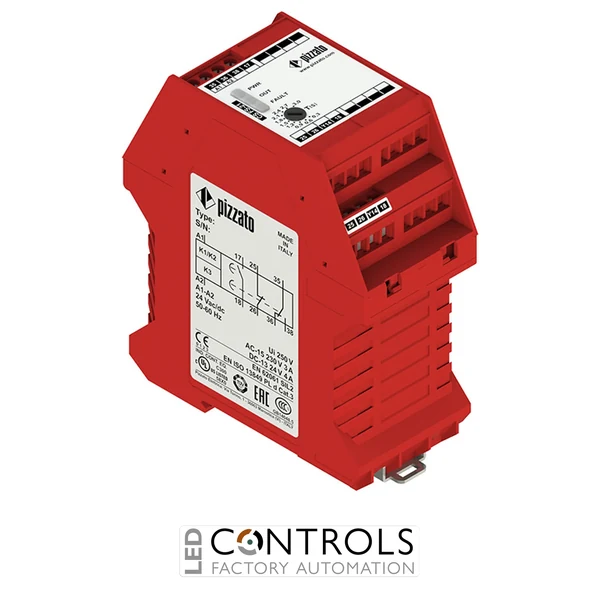

CS FS-23V120 Pizzato Safety timer module 1NO+1NC+1CO, category 3

Why Choose the Pizzato CS FS-23V120 Safety Timer Module?

The Pizzato CS FS-23V120 is a compact and dependable safety timer module designed for industrial automation systems requiring adjustable delay timing and reliable machine safety operation. As part of the Pizzato CS FS-2 safety module series, it provides accurate timing control for safety circuits, interlocked safety devices and industrial machinery applications.

The CS FS-23V120 features an adjustable safety timing range of 3 to 30 seconds with adjustment steps of 3 seconds, allowing engineers to configure controlled release delays for specific machine safety requirements. Its timing circuits use self-monitoring and redundant safety technology to provide dependable operation in safety-related applications.

With a 120 VAC supply voltage, compact 45 mm DIN rail housing and a contact configuration of 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact, the CS FS-23V120 is suitable for electrical control panels, OEM machinery and industrial automation systems.

Key Advantages

• Compact safety timer module for industrial automation applications.
• Adjustable timing range from 3 to 30 seconds for flexible safety sequencing.
• 120 VAC supply voltage suitable for industrial control systems.
• 1 NO + 1 NC + 1 CO contact configuration for versatile integration.
• Designed for Category 3 safety applications.
• DIN rail mounting enables straightforward installation inside electrical cabinets.

Key Features

• Pizzato CS FS-2 safety timer module series.
• Model: CS FS-23V120.
• Adjustable delayed safety timing function.
• Timing range: 3–30 seconds.
• Timing adjustment steps: 3 seconds.
• 120 VAC operating supply voltage.
• 1 NO safety output contact.
• 1 NC auxiliary contact.
• 1 CO auxiliary contact.
• Compact 45 mm modular enclosure.
• DIN rail mounting capability.
• Self-monitoring and redundant timing circuits.

Technical Specifications

• Manufacturer: Pizzato Elettrica
• Series: CS FS-2 Safety Timer Modules
• Model: CS FS-23V120
• Product type: Safety timer module
• Function: Adjustable delayed safety switching
• Timing range: 3–30 seconds
• Timing adjustment: 3 second steps
• Supply voltage: 120 VAC
• Output contacts: 1 NO + 1 NC + 1 CO
• Mounting type: DIN rail mounting
• Connection type: Screw terminals
• Housing width: 45 mm
• Protection rating: IP40 housing / IP20 terminals
• Operating temperature: -25 to +55 °C
• Safety category: Category 3
• Performance level: PL d
• Safety integrity level: SIL CL 2

Reliable Safety Timing for Industrial Machinery

Safety timer modules such as the Pizzato CS FS-23V120 provide controlled timing functions within industrial safety systems. They allow machinery designers to introduce defined delay periods while maintaining dependable monitoring and fault detection.

The CS FS series is designed for machine builders and automation engineers requiring compact, reliable safety components. Its adjustable timing capability provides flexibility when designing safety circuits for industrial equipment and automated production systems.

Typical Applications

• Industrial machinery safety circuits.
• Machine guarding and access protection systems.
• Interlocked safety device applications.
• Automation control panels.
• Packaging and production machinery.
• OEM machine building systems.
• Safety-related industrial installations.
