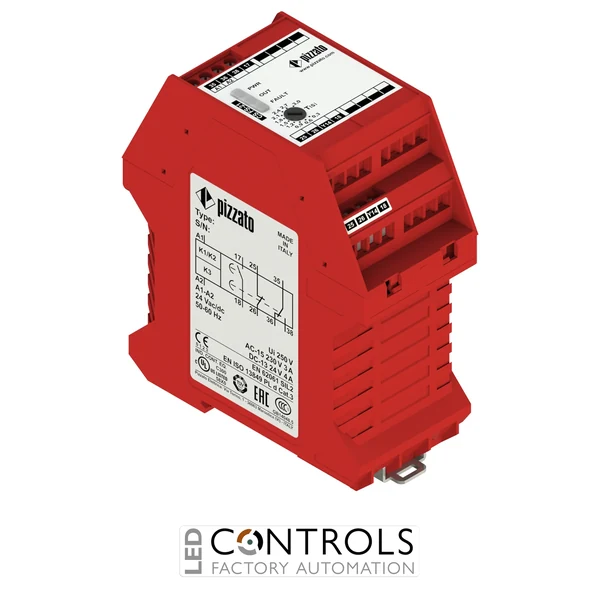

Why Choose the Pizzato CSFS-23VU24 Safety Timer Module?
The Pizzato CSFS-23VU24 is a professional-grade safety timer module designed for industrial machinery that requires controlled, delayed energization of safety outputs. It ensures that machine functions only activate after all safety conditions are satisfied and the programmed time delay has elapsed, improving operator safety and system reliability.
This module is widely used in safety interlocking systems, guard monitoring circuits, and automated machinery where a delay-on energization function is required to safely sequence machine startup operations. It is suitable for safety applications up to Category 3, PL d, SIL 2.
With a 24 V DC supply voltage and a 1NO + 2NC + 1CO output configuration, the CSFS-23VU24 delivers flexible switching capability and reliable timing performance in industrial control environments. ([pizzato.com](https://www.pizzato.com/en/catalog/CSFS23VU24.html?utm_source=chatgpt.com))
Key Advantages
- Reliable delay-on energization safety timing for industrial automation systems.
- Compliant with Category 3, PL d, SIL 2 safety performance levels. ([pizzato.com](https://www.pizzato.com/en/catalog/CSFS23VU24.html?utm_source=chatgpt.com))
- 1NO + 2NC + 1CO output configuration for flexible machine integration. ([pizzato.com](https://www.pizzato.com/en/catalog/CSFS23VU24.html?utm_source=chatgpt.com))
- Compact DIN-rail housing for control panel installation.
- High reliability with forced-guided safety contact architecture.
Key Features
- Pizzato CS FS safety timer series.
- Model: CSFS-23VU24.
- Safety timer with delay-on energization function.
- 24 V DC supply voltage. ([pizzato.com](https://www.pizzato.com/en/catalog/CSFS23VU24.html?utm_source=chatgpt.com))
- 1NO + 2NC + 1CO safety output contacts.
- Screw terminal connection system.
- Designed for machine guarding and safety interlock systems.
Safety Timer Function
The CSFS-23VU24 ensures that safety outputs are only activated after a controlled time delay once input safety conditions are met. This prevents premature machine start and ensures that all safety devices such as guards, interlocks, and emergency stop circuits are fully validated before operation begins.
It is commonly used in automated production systems, press machines, and industrial automation equipment requiring timed sequencing of safety outputs for controlled startup procedures.
Typical Applications
- Industrial machine safety interlocks.
- Guard door monitoring systems.
- Press and automation equipment.
- Emergency stop delay circuits.
- Robotics safety systems.
- High-risk industrial machinery control systems.
