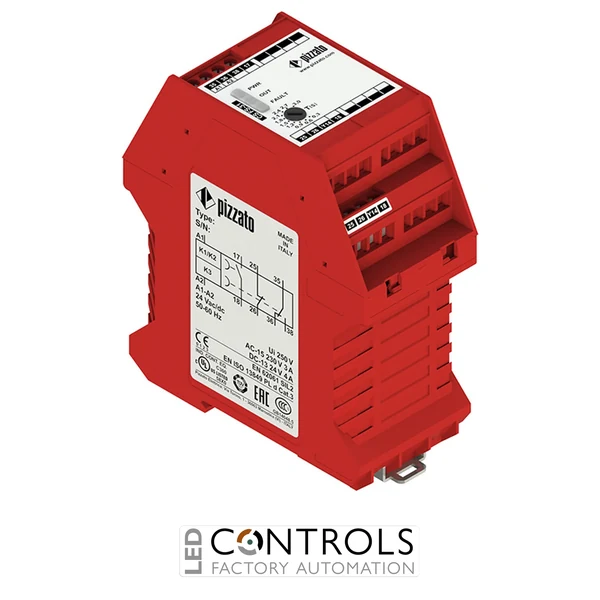

Pizzato CSFS-32VU24 safety timer module with adjustable 1 to 10 second delay, 24 V DC supply and Category 3 safety architecture for industrial safety circuits.
£96.51
The Pizzato CS FS-32VU24 is a compact and dependable safety timer module designed for industrial automation systems requiring reliable timing control and enhanced machine safety performance. As part of the Pizzato CS FS-3 safety module series, it provides controlled safety timing functions for interlocked safety devices, industrial machinery and automated production systems.
This safety timer module is engineered with self-monitoring and redundant timing circuits to support reliable operation in safety-related applications. The CS FS-32VU24 provides a controlled release command for interlocked safety devices and is designed for integration into modern machine safety systems requiring dependable switching performance.
With a 24 VDC supply voltage, compact 45 mm DIN rail housing and a contact configuration of 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact, the CS FS-32VU24 is suitable for industrial control panels, OEM machinery and automated safety installations.
Safety timer modules such as the Pizzato CS FS-32VU24 provide controlled timing functions within industrial safety circuits. They allow machinery designers to manage safety release operations while maintaining dependable monitoring and fault detection.
The CS FS series is designed for machine builders and automation engineers requiring compact and reliable safety components. Its redundant safety design and flexible contact arrangement allow straightforward integration into modern industrial control systems.
| Voltage | 24 V |
|---|---|
| IP Rating | IP40 |
| Series | CS FS |
| Product type | Safety timer relay module |
| Supply voltage | 24 V DC |
| Safety category | Category 3 |
| Performance level | PL d (EN ISO 13849-1) |
| SIL rating | SIL 2 (IEC 61508) |
| Function | Adjustable time-delay monitoring |
| Response time | approx. 1–10 seconds (1 s steps) |
| Contact configuration | 1 NO + 1 NC + 1 changeover |
| Mounting type | DIN rail |
| Connection type | Screw terminals |
| Protection rating | IP40 |
| Operating temperature | -25 to +55 °C |
| Application | Industrial safety circuits and automation systems |
| HS Code | 85369095 |
The Pizzato CS FS-32VU24 is a safety timer module used for controlled safety timing functions in industrial machinery and interlocked safety device applications.
The module operates from a 24 VDC supply voltage suitable for industrial automation systems.
The CS FS-32VU24 provides 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact.
The module can support safety applications up to SIL CL 3 and PL e when correctly integrated into a suitable safety system architecture.
The module is designed for DIN rail mounting inside industrial electrical control cabinets.
Pizzato CS FS safety timer modules are trusted by automation engineers and machine builders worldwide for reliable timing control, safety circuit management and dependable industrial machine protection.{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato CS FS-32VU24 Safety Timer Module", "sku": "CSFS-32VU24", "mpn": "CS FS-32VU24", "brand": { "@type": "Brand", "name": "Pizzato Elettrica" }, "category": "Safety Timer Modules", "description": "Pizzato CS FS-32VU24 safety timer module with 24 VDC supply, 1 NO, 1 NC and 1 CO contacts for industrial safety applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "24 VDC" }, { "@type": "PropertyValue", "name": "Output contacts", "value": "1 NO + 1 NC + 1 CO" }, { "@type": "PropertyValue", "name": "Mounting type", "value": "DIN rail mounting" }, { "@type": "PropertyValue", "name": "Housing width", "value": "45 mm" }, { "@type": "PropertyValue", "name": "Safety level", "value": "SIL CL 3 / PL e" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Pizzato CS FS-32VU24 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Pizzato CS FS-32VU24 is a safety timer module used for controlled safety timing functions in industrial machinery and interlocked safety device applications." } }, { "@type": "Question", "name": "What supply voltage does the CS FS-32VU24 require?", "acceptedAnswer": { "@type": "Answer", "text": "The module operates from a 24 VDC supply voltage suitable for industrial automation systems." } }, { "@type": "Question", "name": "What contact configuration does this safety timer module provide?", "acceptedAnswer": { "@type": "Answer", "text": "The CS FS-32VU24 provides 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact." } }, { "@type": "Question", "name": "What safety level can the CS FS-32VU24 support?", "acceptedAnswer": { "@type": "Answer", "text": "The module can support safety applications up to SIL CL 3 and PL e when correctly integrated into a suitable safety system architecture." } }, { "@type": "Question", "name": "How is the CS FS-32VU24 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The module is designed for DIN rail mounting inside industrial electrical control cabinets." } } ] }
