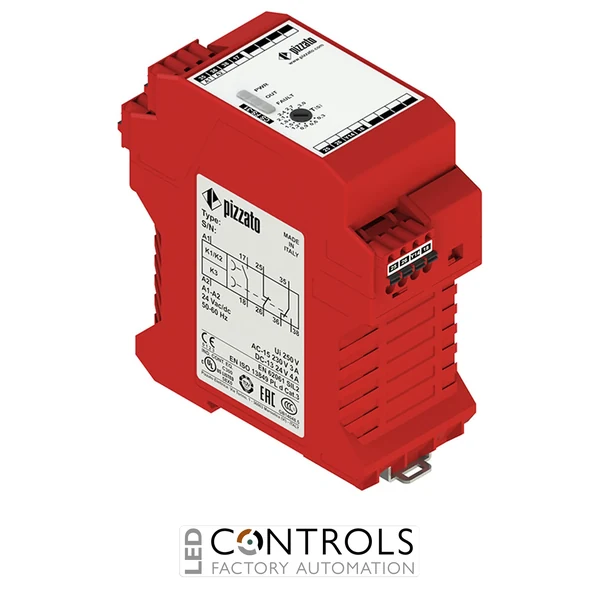

Pizzato CSFS-32XU24 safety timing relay module with delayed-at-energizing function, 24 V DC supply, used for industrial machine safety sequencing applications.
£102.74
The Pizzato CS FS-32XU24 is a compact and dependable safety timer module designed for industrial machinery safety systems requiring controlled timing functions and reliable monitoring of safety circuits. Part of the Pizzato CS FS safety module series, it provides machine builders and automation engineers with a practical solution for implementing timed safety functions in industrial applications.
This safety timer module uses a safety system with self-monitoring and redundancy to provide dependable operation in safety-related applications. The CS FS-32XU24 is designed for safety circuits requiring a controlled response delay and supports integration into industrial control cabinets through compact DIN rail mounting.
With a 24 VDC supply voltage, 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact, the Pizzato CS FS-32XU24 is suitable for applications such as machine guarding, safety interlocks and automated production systems requiring delayed safety operation.
Safety timer modules such as the Pizzato CS FS-32XU24 provide controlled timing functions within machine safety circuits. By introducing a defined response delay, the module helps engineers create safer automated systems while maintaining reliable machine operation.
The CS FS series is developed for OEM manufacturers, machine builders and industrial automation specialists who require dependable safety monitoring, compact installation and reliable performance in demanding environments.
| Voltage | 24 V |
|---|---|
| IP Rating | IP40 |
| Series | CSFS Safety Timing Modules |
| Product type | Safety timing relay module |
| Function | Delayed at energizing |
| Supply voltage | 24 V DC |
| Output contacts | 1 NO + 1 NC + 1 CO |
| Safety category | Category 3 / SIL 2–3 / PL d–e (system dependent) |
| Mounting type | DIN rail / panel mounting |
| Housing | Industrial modular enclosure |
| Operating temperature | -25 to +55°C (typical CSFS range) |
| Protection rating | IP40 / IP20 terminals (typical series construction) |
| HS Code | 85369095 |
The CS FS-32XU24 is a safety timer module used to provide controlled timing functions and delayed safety outputs in industrial machinery safety circuits.
The module operates from a 24 VDC supply suitable for industrial automation control systems.
The Pizzato CS FS-32XU24 supports safety applications up to Category 3, PL d and SIL 2 depending on system configuration.
The module provides 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact for flexible safety circuit integration.
The module provides an adjustable response time range of 1 to 10 seconds with 1 second adjustment steps.
