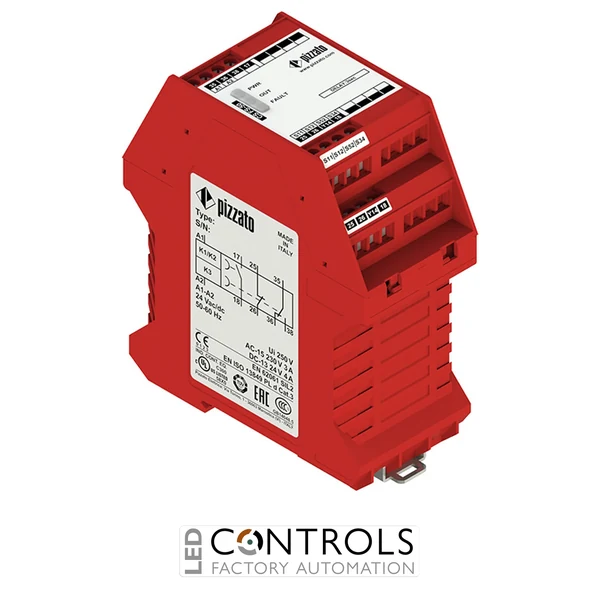

Pizzato CSFS-50V120-TF2 safety timer module with fixed delay function, 120 V AC supply and Category 3 safety architecture for industrial safety circuits.
£116.13
The Pizzato CSFS-50V120-TF2 is a reliable safety timer module designed for industrial machine safety applications where controlled timing functions and dependable safety monitoring are required. Part of the Pizzato CS FS-5 safety relay series, this module provides a compact solution for integrating timed safety functions into modern automation and control systems.
The CSFS-50V120-TF2 is engineered with self-monitoring and redundant safety circuitry to support safe machine operation. It is suitable for applications requiring delayed safety functions, including controlled release operations for safety devices and industrial automation equipment.
With a 120 VAC control supply voltage and compatibility with 24 VDC supply systems, the CSFS-50V120-TF2 offers flexible installation options for industrial control panels. Its compact 45 mm DIN rail housing helps reduce cabinet space requirements while maintaining reliable safety performance.
Safety timer modules such as the Pizzato CSFS-50V120-TF2 provide controlled timing functions within machine safety circuits. They allow automation systems to perform safe shutdown sequences and delayed safety releases while maintaining reliable monitoring of critical safety components.
The Pizzato CS FS-5 series is developed for machine builders and automation engineers who require dependable safety solutions for industrial equipment. Its compact construction, safety monitoring features and flexible voltage options make it suitable for a wide range of control panel applications.
| Voltage | 120 V |
|---|---|
| Series | CS FS |
| Product type | Safety timer relay module |
| Supply voltage | 120 V AC |
| Safety category | Category 3 |
| Function | Fixed time-delay (TF2) |
| Contact configuration | 1 NO + 1 NC + 1 changeover |
| Performance level | PL d (EN ISO 13849-1) |
| SIL rating | SIL 2 (IEC 61508) |
| Mounting type | DIN rail |
| Connection type | Screw terminals |
| Weight | approx. 0.33 kg |
| Application | Industrial safety circuits and automation systems |
| HS Code | 85369095 |
The Pizzato CSFS-50V120-TF2 is a safety timer module used to provide controlled timing functions within industrial machine safety circuits.
The CSFS-50V120-TF2 supports 120 VAC and 24 VDC supply options for flexible industrial installation.
The module provides a safe delay-on opening function for controlled safety operations in industrial automation systems.
The module provides 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact.
The module is typically installed inside electrical control cabinets using DIN rail mounting as part of industrial safety systems.
Pizzato safety timer modules are used worldwide in industrial automation systems to deliver reliable safety monitoring, controlled machine operation and enhanced protection for modern machinery.{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato CSFS-50V120-TF2 Safety Timer Module", "sku": "CSFS-50V120-TF2", "mpn": "CSFS-50V120-TF2", "brand": { "@type": "Brand", "name": "Pizzato Elettrica" }, "category": "Safety Timer Modules", "description": "Pizzato CSFS-50V120-TF2 safety timer module designed for industrial machine safety applications with safe delay timing functionality.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "120 VAC / 24 VDC" }, { "@type": "PropertyValue", "name": "Safety category", "value": "Category 3" }, { "@type": "PropertyValue", "name": "Safety performance", "value": "PL d / SIL 2" }, { "@type": "PropertyValue", "name": "Output contacts", "value": "1 NO + 1 NC + 1 CO" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Pizzato CSFS-50V120-TF2 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Pizzato CSFS-50V120-TF2 is a safety timer module used to provide controlled timing functions within industrial machine safety circuits." } }, { "@type": "Question", "name": "What supply voltage does this safety timer module require?", "acceptedAnswer": { "@type": "Answer", "text": "The CSFS-50V120-TF2 supports 120 VAC and 24 VDC supply options for flexible industrial installation." } }, { "@type": "Question", "name": "What type of safety function does this module provide?", "acceptedAnswer": { "@type": "Answer", "text": "The module provides a safe delay-on opening function for controlled safety operations in industrial automation systems." } }, { "@type": "Question", "name": "How many contacts does the CSFS-50V120-TF2 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The module provides 1 NO safety contact, 1 NC auxiliary contact and 1 CO auxiliary contact." } }, { "@type": "Question", "name": "Where is the Pizzato CSFS-50V120-TF2 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The module is typically installed inside electrical control cabinets using DIN rail mounting as part of industrial safety systems." } } ] }
