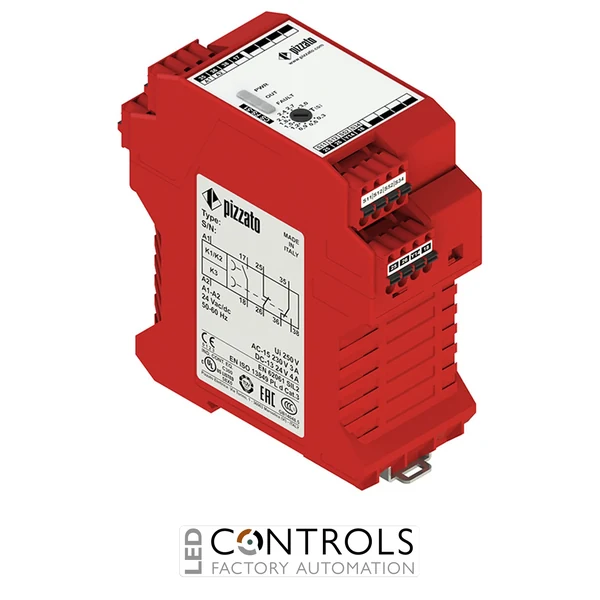

Why Choose the Pizzato CSFS-54X120 Safety Timing Module?
The Pizzato CSFS-54X120 is a robust safety timing relay module designed for industrial automation systems requiring precise delayed switching of safety outputs. As part of the trusted Pizzato CSFS safety relay series, it provides reliable timing control for safe machine sequencing, controlled start-up procedures, and consistent safety circuit management.
This model features a delayed-at-energizing safety function, meaning the safety outputs activate only after a preset delay once input conditions are satisfied. It is commonly used in machinery where controlled sequencing is required to prevent unsafe or premature activation of equipment. The CSFS-54X120 is designed for safety applications up to Category 3 / PL d / SIL 2.
With its compact DIN-rail mounting design and industrial-grade enclosure, the CSFS-54X120 integrates easily into control panels used in manufacturing, automation, and OEM machine systems. It is engineered for environments where timing accuracy, functional safety, and long-term reliability are essential.
Key Advantages
- Provides delayed-at-energizing safety timing function.
- Designed for industrial safety systems up to Category 3 / PL d / SIL 2.
- Ensures safe and controlled machine sequencing.
- Compact DIN-rail format for easy control cabinet installation.
- High reliability with industrial-grade construction.
- Suitable for OEM machinery and automation systems.
Key Features
- Pizzato CSFS safety relay series.
- Model: CSFS-54X120.
- Safety timing function: delayed at energizing.
- Output configuration: 1 NO safety contact + 1 NC + 1 CO (changeover).
- Supply voltage: 120 VAC.
- DIN rail / panel mounting compatible housing.
- Screw terminal connection system for secure wiring.
Reliable Safety Timing for Industrial Systems
The CSFS-54X120 ensures that safety outputs are only activated after a controlled delay once energizing conditions are met. This is essential in automated systems where multiple machine stages must be sequenced safely to avoid hazardous startup conditions.
It is widely used in safety circuits requiring timed enabling, redundancy, and compliance with international machine safety standards such as SIL and Performance Level (PL) requirements.
Typical Applications
- Industrial automation systems.
- Machine tools and production equipment.
- Presses and stamping machinery.
- Conveyor and sequencing systems.
- Safety interlock timing circuits.
- OEM machine safety integration.
