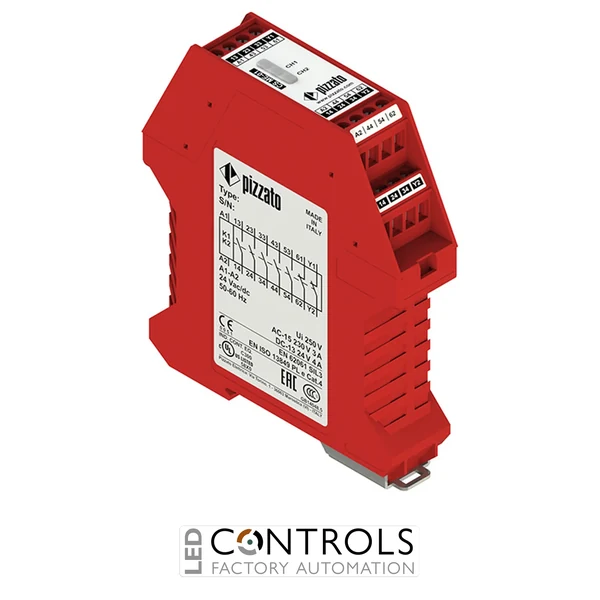

Pizzato CSME-01V024 expansion module with 5 NO safety contacts and 24 V AC/DC supply, designed to extend safety relay outputs in industrial systems.
£127.64
The Pizzato CSME-01V024 is a compact and reliable safety expansion module designed to increase the number of safety outputs available from industrial safety relay systems. As part of the Pizzato CS ME-01 safety expansion module series, it provides additional forced-guided safety contacts for machinery protection, automation systems and industrial control applications.
The CSME-01V024 is designed to operate alongside compatible safety modules, expanding output capacity while maintaining dependable safety performance. It provides 5 normally open safety contacts, 1 normally closed auxiliary contact and 1 normally closed feedback contact for flexible integration into industrial safety circuits.
With a 24 VAC/DC supply voltage, screw terminal connections and a compact 22.5 mm DIN rail housing, the CSME-01V024 is ideal for OEM machine builders, automation engineers and control panel manufacturers requiring additional safety contacts while saving valuable cabinet space.
Safety expansion modules such as the Pizzato CSME-01V024 allow machine designers to extend the number of available safety outputs from a primary safety relay or safety controller. This enables multiple contactors, actuators and safety circuits to be controlled from a single safety monitoring system.
The CS ME series is developed for industrial automation environments where compact installation, reliable switching performance and high-level safety integration are required. The CSME-01V024 provides a practical solution for expanding safety relay functionality while maintaining compliance with modern machinery safety requirements.
| Voltage | 24 V |
|---|---|
| IP Rating | IP40 |
| Series | CS ME |
| Product type | Safety expansion module |
| Supply voltage | 24 V AC/DC |
| Function | Contact expansion (instantaneous) |
| Contact configuration | 5 NO + 1 NC + 1 NC feedback |
| Safety level | up to PL e / SIL 3 / Category 4 |
| Mounting type | DIN rail |
| Connection type | Screw terminals |
| Protection rating | IP40 |
| Operating temperature | -25 to +55 °C |
| Application | Industrial safety circuits and automation systems |
| HS Code | 85369095 |
The Pizzato CSME-01V024 is a safety expansion module used to increase the number of safety contacts available from an industrial safety relay system.
The module operates with a 24 VAC/DC supply voltage.
The CSME-01V024 provides 5 normally open safety contacts, together with auxiliary and feedback contacts.
The module supports safety applications up to SIL CL 3 and Performance Level e when correctly integrated with suitable safety equipment.
The module is typically installed inside electrical control cabinets using DIN rail mounting as part of industrial safety systems.
Pizzato safety expansion modules are widely used in industrial automation systems to increase safety output capacity while maintaining reliable machine protection and compliance with modern safety standards.{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato CSME-01V024 Safety Expansion Module", "sku": "CSME-01V024", "mpn": "CSME-01V024", "brand": { "@type": "Brand", "name": "Pizzato Elettrica" }, "category": "Safety Expansion Modules", "description": "Pizzato CSME-01V024 safety expansion module with 5 NO safety contacts, 1 NC auxiliary contact, 1 NC feedback contact and 24 VAC/DC supply for industrial safety applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "24 VAC/DC" }, { "@type": "PropertyValue", "name": "Safety outputs", "value": "5 NO" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1 NC" }, { "@type": "PropertyValue", "name": "Feedback contact", "value": "1 NC" }, { "@type": "PropertyValue", "name": "Safety performance", "value": "SIL CL 3 / PL e / Category 4" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Pizzato CSME-01V024 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Pizzato CSME-01V024 is a safety expansion module used to increase the number of safety contacts available from an industrial safety relay system." } }, { "@type": "Question", "name": "What supply voltage does the CSME-01V024 require?", "acceptedAnswer": { "@type": "Answer", "text": "The module operates with a 24 VAC/DC supply voltage." } }, { "@type": "Question", "name": "How many safety contacts does this module provide?", "acceptedAnswer": { "@type": "Answer", "text": "The CSME-01V024 provides 5 normally open safety contacts together with auxiliary and feedback contacts." } }, { "@type": "Question", "name": "What safety performance level does this module support?", "acceptedAnswer": { "@type": "Answer", "text": "The module supports safety applications up to SIL CL 3 and Performance Level e when correctly integrated with suitable safety equipment." } }, { "@type": "Question", "name": "Where is the CSME-01V024 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The module is typically installed inside electrical control cabinets using DIN rail mounting as part of industrial safety systems." } } ] }
